2024 New 3-in-1 Handheld 1500W 2000W Laser Welder Machine with Air Cooling Laser Source Gear Core Component Metal Welding

Product Description

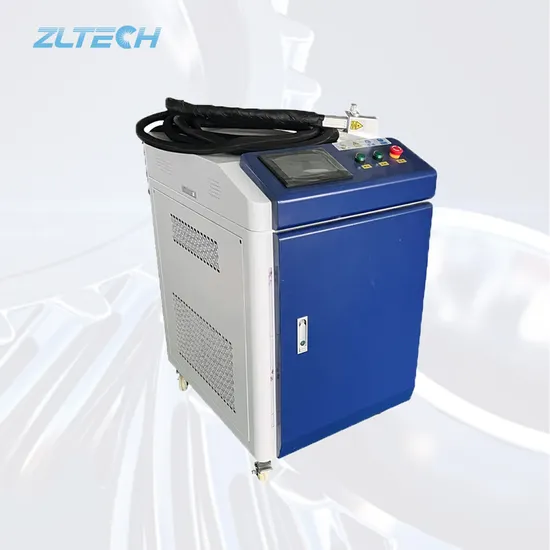

Handheld Fiber Laser Welding Machine 1000w 1500w 2000w 3000w
The handheld fiber laser welding machine is a new generation of laser welding equipment, belonging to non-contact welding. Its working principle involves directing a high-energy intensity laser beam directly onto the material surface. Through the interaction between the laser and the material, the material is melted internally, followed by cooling and crystallization to form a weld seam.
Features
1. High efficiency.Fast welding speed, large depth, and small deformation.
2. Welding and cutting can be freely switched, requiring only the replacement of the welding copper nozzle with the cutting copper nozzle, which is very convenient.
3. Handheld laser welding is a form of thermal fusion welding. Compared to traditional welding, laser welding has a higher energy density, resulting in better welding effects.
4. The welding zone experiences minimal heat impact, is less prone to deformation or blackening, and does not leave traces on the backside.
5. It offers greater welding depth, thorough melting, and reliable bonding, with weld joint strength meeting or exceeding that of the base material.
6. The operation is simple, enabling easy achievement of high-quality welding results.

Parameters
Model	ZLW
Laser Power	1000w/1500w/2000w/3000w
Welding Material	Metal
Laser Source Brand	Max / Raycus/Everfoton/BWT
Water Chiller Brand	Hanli / S&A
Wavelength(nm)	1070±20nm
Power Supply	AC 220V, 50Hz/60Hz; AC 380V, 50Hz/60Hz
Interface	QBH
Focal Spot Diameter	0-5mm(adjustable)
Wires Materials	Iron/Stainless Steel/Aluminum Magnesium/Aluminum/Brass

Details
Single pendulum hand welding head
----Function application, welding, cutting switch.
----Intelligent protection system, mobile terminal APP and PC monitoring, real-time feedback of working status.
----High threshold optical elements, better welding effect.
----Multiple security locks with high security performance.
----Full body water cooling design, more durable stability.
----Ergonomic design, comfortable grip, easy to grasp.
Multi Nozzles
----We will provide you with more nozzles according to your job.
----Feeding nozzles, outer nozzles, inner nozzles, etc.
Laser Welding System
----The system supports many languages, such as English, Turkey, Spanish, Russian, Arabic, Italian, etc.
----Easy to operate and supports touch screen.
----Real-time feedback on welding status, easy to check for errors.
Laser Source
----Max/Raycus/Everfoton/BWT Brand Laser Source.
----High electro-optical conversion efficiency, high light beam quality, high energy density.
----Wide modulation frequency, high reliability, long service life, maintenance-free operation.
Water Chiller
----Specially designed for fiber laser equipment and compatible with various brands of lasers.
----A full range of environmentally friendly refrigerants, worry-free exports.
----Stable and reliable performance, low failure rate and energy saving.
----After many experimental tests so the quality is guaranteed.
Wire Feeding
----Higher precision: Fiber laser welding offers higher precision than traditional welding methods.
----Faster welding speed: The fiber laser welding process is much faster than traditional welding methods, saving time and increasing productivity.
----Reduce heat input: Compared with traditional methods, fiber laser welding produces a smaller heat-affected zone, reducing the risk of deformation and improving welding quality.
Fiber optic cable
----The fiber optic cable of a typical handheld laser welding machine is 10 meters long, allowing for material cleaning within a larger area without the need to move the machine.
----If your workshop has a larger area, you can customize the cable length, with options of 15 meters and 20 meters.
----However, longer is not necessarily better, as longer fiber cables result in greater energy loss.
Welding Sample Show
Welding Materials and Application:
The hand-held fiber laser welding machine is used for welding various metal materials, and can weld stainless steel mirror characters, stainless steel electroplated characters, precision stainless steel characters, iron paint characters, etc. Used in lighting, mold and other industries, communication equipment, medical treatment, electronics, copper parts and small welding processing industries.
Other styles of products
Company Profile
ZLTECH laser is a R&D, manufacturing and sales enterprise who dedicated to providing global users with fiber laser industrial intelligent equipment and personalized customized design services.
The company's main products include metal fiber laser cutting machine, handheld laser welding machine and handeheld laser cleaning machine.To provide customers with tailor-made services to meet different work needs, ZLTECH has established an independent R&D department with 15 professional engineers.
We have strict and systematic quality control for each process, from material, production to delivery. We use high-tech precision instruments to measure the accuracy and transmission speed of the machine. The main tests include track transmission accuracy level test, cutting head vertical test, bed parallel and vertical test, etc.
ZLTECH has one professional after sale team which can provide technical support to customers in time. Online training and door training are both available, welcome to visit us at any time.
Customer Feedback
FAQ
1.If I do not know how to operate the machine, how you can help me ?
First, we have detail user manual and videos for your learning. Then we can provide training in our factory or your place. If you have any other questions, our engineers will help you online, via tel, skype or email.
2.How long can delivery the machine ?
Laser welding/cleaning machine:7 days.
Laser Cutting Machine:For our standard model, the delivery time is 10-15 working days. For customzied model, it will need about 20-40 working days.
3.How about the shipping cost?
Sea transportation, we choose 20-foot container or 40-foot container according to the size you buy.
We have a shipping company that has cooperated for many years, which can help you save costs.
4.How about the payment?
T/T, 30% in advance and balance before shipping. We also accept Credit Card, Paypal, Western Union, LC, DP, DA.

---
