Multifunctional Diesel Rotary Tiller Riding Crawler Micro Tiller

Product Description

Product Description

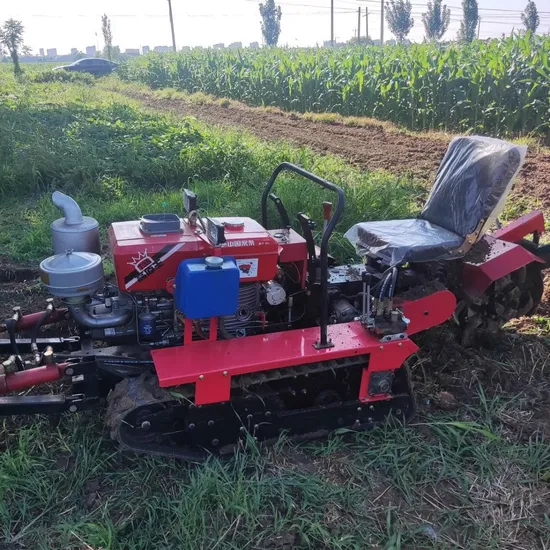

Mini Train Tracked Rotary Tiller With Diesel Engine The frame design is reasonable, using thick steel plate, strong and durable, reducing the vibration generated by the engine and prolonging the life of the machine. The engine adopts 25 horsepower diesel engine. 25 horsepower adopts a customized all-gear gearbox. The front gearbox has 3 forward gears, 1 reverse gear, and a working connection box at the rear. It can be used with a large number of agricultural tools such as rotary tillage and ditching. The left and right steering adopts a tie rod mechanism, which is easy to operate, not easy to damage and malfunction.
Detailed Photos
Product Parameters

Model	XF-250			XF-400
Power	25HP			40HP
Travel Gear	6+2			6+2
Rotary Tillage	2~3 acres/h			2~3 acres/h
Size	250×90×100cm			270×100×85cm
Weight	600KGS			780KGS
Transmission Model	YF-250TE			YF-320TE
Engine	17KV Water-cooled electric starting diesel engine (with built-in power generation)			27KV Water-cooled electric starting diesel engine (with built-in power generation)
Function	Turn around in place Hydraulic lifting Manned hill climbing Can work in paddy fields within 15cm
Rotary Cultivator	Equipped
Additional Parts with Machine	Trenching	Weeding	Backfill		Bulldozing
	W25cm	W100cm	W100cm		W100cm

Application
Packaging & Shipping
Company Profile

---
