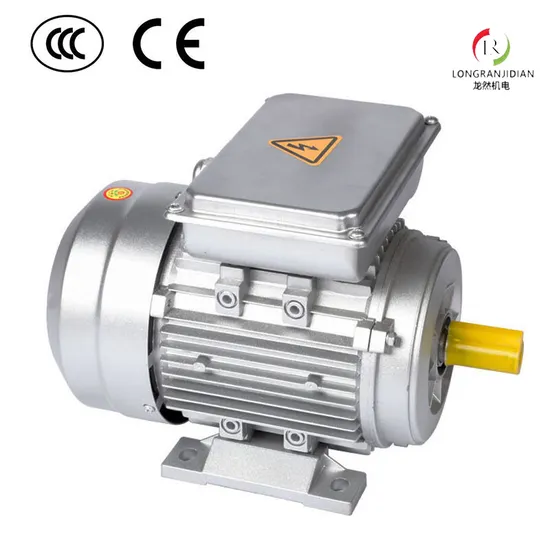

1100W, Asynchronous Adaptable High-Performance CE Motor for Single-Phase Applications

Product Description

Product Description Introducing the ML series motors by Longran Electromechanical (Zhejiang) Co., Ltd., the epitome of excellence in the world of totally enclosed single-phase capacitor-start asynchronous motors. Engineered to perfection, these marvels of engineering offer a straightforward yet robust construction that guarantees flawless and dependable operation. Enjoy simplified maintenance and a host of technical and economic advantages that make these motors a standout choice. Ideal for a wide array of applications, from air compressors and water pumps to refrigerators, washing machines, medical equipment, woodworking tools, and agricultural machinery, their versatility is simply unmatched. Featuring a protection class of IP55, insulation class E or F, and a cooling mode of IC0141, the ML series motors are designed to deliver optimal performance across diverse conditions. When it comes to machinery needs, look no further than the ML series motors to meet and exceed your expectations.
Say goodbye to inferior motor force and the dangers posed by flammable low-quality copper wires and unstable motor amplitude. If these issues plague your current setup, our high-quality electric motor is your perfect solution. Crafted from superior materials, this motor delivers unparalleled motor force, exceptional operational stability, and a significantly extended service life. This top-tier motor tackles common challenges head-on, ensuring safe, efficient, and enduring performance that stands the test of time. Trust in our high-performance electric motor to elevate your machinery's efficiency and reliability.

Frame Size:			56-132
Rated Voltage:			220V/110V/240V/115V/230V or request
Rated Frequency:			50HZ,60HZ
Rated Power:			0.12-7.5kW
Insulation Class:			B/F/H or request
Altitude:			≤1000m or request
Relative Humidity:			≤90%
Protection Class:			IP55
Cooling Method:			IC411
Ambient Temperature:			-15°-+40°C
Duty:			S1
Mounting:			B3,B5,B14,B35,B34

Type No.	Output		Voltage V	Frequency HZ	Current A	Speed r/min	EFF %	Power Factor	Locked torque Rated torque TST/TFL	Locked current Rated current IST/TFL	Max torque Rated torqu TM/TFL
	kW	HP
ML711-2	0.37	0.5	220	50	2.60	2760	68	0.95	22	6.5	1.7
ML712-2	0.55	0.75	220	50	3.71	2760	71	0.95	22	6.5	1.7
ML801-2	0.75	1	220	50	4.92	2780	73	0.95	2.2	6.5	1.7
ML802-2	1.1	1.5	220	50	7.32	2780	75	0.95	2.2	6.5	1.7
ML90S-2	1.5	2	220	50	9.32	2800	77	0.95	2.2	6.5	1.7
ML90L-2	22	3	220	50	13.50	2800	78	0.95	2.2	6.5	1.7
ML100L-2	3	4	220	50	18.20	2820	79	0.95	2	7	1.7
ML112M-2	3.7	5	220	50	22.10	2820	80	0.95	2	7	1.7
ML711-4	0.25	0.33	220	50	1.90	1360	63	0.95	2.2	6.5	1.7
ML712-4	0.37	0.5	220	50	2.64	1360	67	0.95	2.2	6.5	1.7
ML801-4	0.55	0.75	220	50	3.76	1380	70	0.95	22	6.5	1.7
ML802-4	0.75	1	220	50	4.98	1380	72	0.95	2.2	6.5	1.7
ML905-4	1.1	1.5	220	50	7.11	1400	74	0.95	2.2	6.5	1.7
ML90L-4	1.5	2	220	50	9.44	1400	76	0.95	22	6.5	1.7
ML100L1-4	22	3	220	50	13.70	1410	77	0.95	2	7	1.7
ML100L2-4	3	4	220	50	18.40	1420	78	0.95	2	7	1.7
ML112M1-4	3	4	220	50	18.40	1420	78	0.95	2	7	1.7
ML112M2-4	3.7	5	220	50	22.40	1420	79	0.95	2	7	1.7
ML13251-4	3.7	5	220	50	22.40	1420	80	0.95	2	7	1.7
ML13252-4	5.5	7.5	220	50	32.50	1420	81	0.95	2	7	1.7
ML132M-4	7.5	10	220	50	44.00	1420	83	0.95	2	7	1.7

Detailed Photos
more products Longran Electromechanical (Zhejiang) Co., Ltd. Longran Electromechanical proudly offers an extensive array of high-quality AC and DC motors, meticulously designed to cater to a diverse spectrum of industrial applications. Our premier product lineup includes:
YE5 Series: High-Efficiency Three-Phase Asynchronous Motors YE4 Series: High-Efficiency Three-Phase Asynchronous Motors YL, ML Series: Double-Value Capacitor Motors YC Series: Capacitor Starter Motors YY, MY Series: Capacitor Running Motors JY Series Motors YS, MS Series: Small Power Motors JY, JW, JZ Series and YEJ Electromagnetic Brake Series YVP, Y2VP, MLVP: Frequency Conversion Speed Regulation Series DC Brushless Series DC High-Pressure Cleaning Series Vehicle Motor Series At Longran Electromechanical, our robust technical team features senior engineers and expert technicians. Utilizing cutting-edge technology, advanced management practices, and state-of-the-art testing facilities, we guarantee superior product quality. We are committed to delivering excellent quality and service, fostering mutual success with our esteemed clients.
Our products, certified with CE and compliant with the New National Standard GB/T28575-2012 1 Secondary Energy Efficiency/P55, are renowned both domestically and internationally. We warmly invite inquiries and business collaborations from all interested parties.
Our key product offerings include:
YE4 Super High Efficiency Secondary Energy Efficiency Motor YE3 Super High Efficiency Energy Saving Series Three-Phase Asynchronous Motor YE3 Super High Efficiency Energy Saving Aluminum Shell Motor YVF2 Frequency Conversion Series Three-Phase Asynchronous Motor YD2 Series: Two-Speed Multi-Speed Three-Phase Asynchronous Motor YEJ2 Series: Electromagnetic Brake Three-Phase Asynchronous Motor YBX3 Series: Flameproof Three-Phase Asynchronous Motor YVFEJ2 Series: Variable Frequency Brake Three-Phase Asynchronous Motor YDEJ Series: Multi-Speed Electromagnetic Brake Three-Phase Asynchronous Motor, Oil Pump Motor YL Single-Phase Double-Capacitor Asynchronous Motor ML Single-Phase Aluminum Shell Double Capacitor Asynchronous Motor YC Single-Phase Iron Shell Asynchronous Motor YY Single-Phase Single-Capacitor Aluminum Shell Motor We also excel in creating custom motors tailored for stone machinery and equipment, as well as motors designed to meet specific power, frequency, and pressure requirements. Our motors come in a variety of protection grades, including IP55, IP66, and other specialized derivatives.
Certifications
Our Advantages
1. Q: Are you able to manufacture products based on customer drawings?
A: Absolutely! We specialize in bespoke services meticulously tailored to meet our customers' distinctive needs. Additionally, we can customize the nameplate of our electric motors to proudly feature your unique brand.
2. Q: What payment terms do you offer?
A: We require a 30% deposit before commencing production. The balance is payable via T/T before the delivery of your order, ensuring a secure and smooth transaction.
3. Q. Are you a trading company or a manufacturer?
A. We are a devoted manufacturer, equipped with cutting-edge machinery and a highly skilled workforce, ensuring top-notch production quality.
4. Q. What is your monthly production capacity?
A. Our manufacturing facility boasts a robust production capacity, capable of delivering 4000-5000 units per month, meeting high demand efficiently.
5. Q: Do you offer free samples?
A: Indeed, we provide complimentary samples, though we kindly request that customers cover the courier costs for delivery.
6. Q: Do you possess any certifications?
A: Yes, our products proudly carry the CE mark, and we also hold a prestigious CCC certificate report, assuring you of our commitment to quality and compliance.

---
