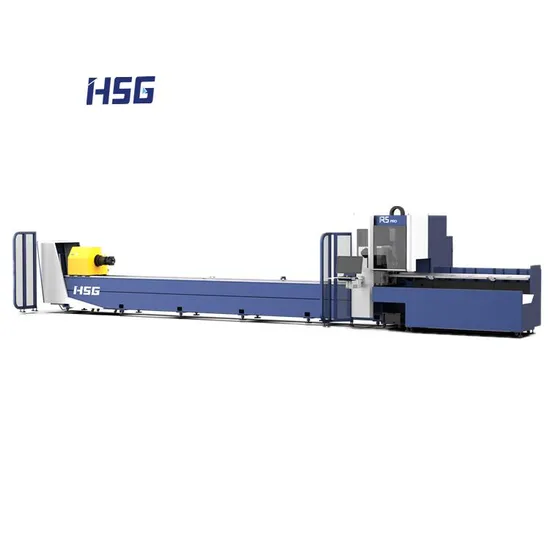

Profile Rectangular Square Round Pipe Fiber Tube Laser Cutting Machine

Product Description

CNC Metal Aluminum Ms /Ss /Carbon/ Mild /Stainless Steel Rectangular Square Round Fiber Tube Pipe Laser Cutting Machine
Laser Tube Cutting Machine Advantage:
1.Squircle Pneumatic Chucks
2.Japanese Takagi Tube Nest (TTN) Software
3.Scraps Collector
4. Optional Laser-proof Glass and Safety Light Curtain
* Machine appearance, technical parameters, function description, data comparison shown in this page are from HSG in-house laboratory. All testing results and experimental data shall be subject to real machine.
The point of R5
1.Small Size ,Rich Functions
R5 II is 15% smaller in size than same-grade model, TH65 and easily operated in a crowded workshop.
It deals with round, square, rectangular tube, as well as angle, channel, H-shaped steel. The weight of single tube reaches 200kg.
2.Easy to Cut Various Tubes
Round tube Φ20mm-254mm, square tube 20*20mm-200*200mm Cut rectangular tubes, and angle, channel, H-shaped steel, besides conventional tubes weight of single tube: 200kg, to provide you with good-value products.
3.Double Squircle Pneumatic Chucks
* Automatic centering
* Large and constant clamping force to clamp heavy tubes
* Expand clamping range of square tubes
* Detecting sensor for front and rear chuck opening & clamping
Φ20-240mm 20*20-240*240mm Tailing length 85mm
4.Automatic Unloading Device
Tube unloading height will be adjusted intelligently. Finished products & wastes are sorted out automatically to reduce the dependence on labor force and the labor intensity of workers.Optional Features (R5): Full-/semi-automatic loading device: reduce labor intensity, save labor force and make cutting efficient; Spoon function: put red copper pipe into tube to be cut automatically according to tube length, to minimize slag residues ; Technology of seams detection: identify weld surface automatically with HD camera and imaging software before working;
5.HSG-X9000 Bus CNC System
21.5-inch touch screen with concise interface
Real-time monitoring of core components and early warning if abnormal
Simple lines in favor of low failure rate
Auxiliary functions incl. tube error detection, welds check
Rich tube cutting library
* Bus refers to data transmission mode via on-site bus control system.
Intelligent Production Line
* Turning Plates for Unloading
Convey finished heavy tubes stably from high to low while unloading and protect tubes from any possible harm and scratch.
* Optional Automatic Loading Device
Fulfil both batch and separate orders
Product Parameters

Power	1500-4000W
X/Y-axis Positioning Accuracy	±0.03mm/m
X/Y-axis Repositioning Accuracy	±0.03mm
No-load Speed	100m/min
Acceleration	1.0G
Rotating Speed of Chucks	100r/min
Round Tube Processing Dim	20-240mm
Square Tube Processing Dim	20*20-240*240mm
Length of Tube	6500mm
Weight of Single Tube	200kg
Tailing	85mm
Overall Dimensions (L*W*H)	12400*3100*2500mm

Cutting Sample
Packaging & Shipping
Our high-standard package, incl. aluminum foil, metal framework, fumigation wooden case, anti-rust oil+oilpaper, moisture-barrier bag, waterproof plastic film and filling foam, can satisfy ocean shipping criteria and will ensure that machines are transported to users safely.
Company Profile
HSG Laser Co., Ltd.
HSG Laser, founded in 2006, as a national hi-tech enterprise with an eye to R&D, production and sales of laser equipment, is now mainly dedicated to serve global customers with intelligent metal forming solutions. Starting from China, HSG Laser has expanded its service network to 100+ countries and regions after 16 years of high-quality development. It has two wholly-owned subsidiaries in global industrial powers, Germany and Japan, and creates its own high-end brand Xlase. In China, four standardized intelligent equipment manufacturing bases have been completely built in its headquarters (Foshan City), Puhang, Suzhou and Jinan. HSG frame also includes 2 domestic subsidiaries, 3 branches and 20 operation service centers.
FAQ
1500W~6000W Three Chuck Automatic Loading and Unloading Metal Pipe Tube Laser Cutting Machine for Stainless Steel Carbon Steel Alu Brass Copper Cutting Equipment
1. WHAT IS R?
Reform : In pursuit of cutting technology & efficiency, practical use & functional customization
Real : Satisfy the real demands of users by functional upgrades
Relax : Offer convenient service by its intellectualization
Running : Take the lead in tube cutting industry by many ground-breaking functions
Return : Bring higher effiiciency & returns by forward-looking plans 2. What can it cutting?
-Laser machine for metal usually deal with carbon steel, stainless steel, aluminum, brass and alloy.

3. WHY CHOOSE R5 II ?
-Sales champion among economical machines in the industry
Total sales≥1000+ sets since its first launch in 2016
Save labor costs by 50% and improve efficiency by 20% at least
7*24h smart work with no need for manual intervention
Multiply the productivity compared with same-grade models
4. Can I visit your factory?
-Of course.Please contact us any time . We will arrange in advance.
