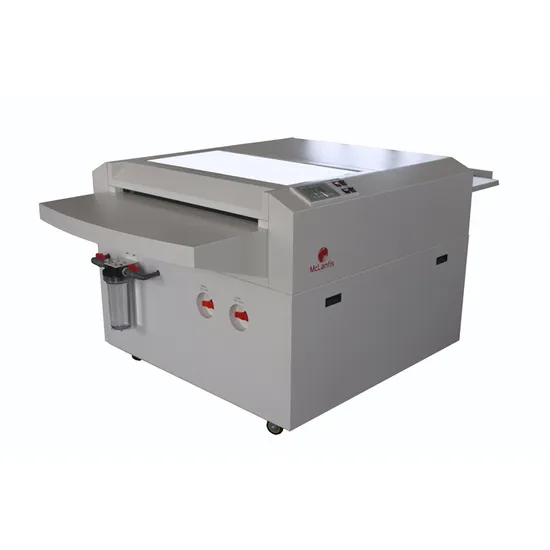

CTP Plate Processor for CTP Plate Machine

Product Description

1. Exquisite Design and Enduring Duralumin Material
Built with highly acid-resistant duralumin materials and PVC tank inside, McLantis thermal CTP plate processor is designed with long operation life.
2. Precise Electronic Controls
Equipped with Precise Siemens PLC control, McLantis thermal CTP plate processor operates the develop-wash-gum-dry process smoothly without any letup.
3. Easy Operation and Maintenance
McLantis thermal CTP plate processor can be connected to most thermal CTP brands and operates online or offline. Suitable for most brands 0.15 mm - 0.4 mm thermal plates. Convenient access to all serviceable components.
4. Superior Plate Developing Performance
Developing processing roller assures no damage to the plate surface and two sets of brushes assures sufficient development to the plate in McLantis thermal CTP plate processor. Equipped with automatic anti-oxidation detecting and replenishing system, McLantis processors accurately control developer concentration.
5. Independent Cooling System
Independent cooling system on McLantis thermal CTP plate processor keeps the developing temperature fluctuation within 0.5 degree Celsius.
6. Environmental Friendly
Gumming process with automatic cleaning and recycling function. Energy saving and environmental friendly.

Model	PROCEMAC thermal CTP plate processor
	90PT	125PT		150PT	165PT
Material	thermal CTP plate and CTCP plate
Capacity	12-90 m/hr
Plate width (mm)	900	1250		1500	1650
Min. Plate length(mm)	300	400		400	400
Plate thickness(mm)	0.15-0.4
Tank content, developer(L)	45	60		75	100
Tank content, wash(L)	35	45		60	80
Adjustable temperature, dev	0 to 40 degree C. adjustable
Adjustable temperature, dry	normal temperature to 70 degree C.
Water consumption, max	8 L/min		12 L/min	15 L/min	20 L/min
Diameter of wash brush (mm)	50
Rotary speed of wash brush	80 rpm
Filter(um)	75
Water supply	tap water (min. pressure 1 bar)
Gumming	Roller pressing gumming
Diameter of roller	60mm
Dev. replenishment	0-1L per plate
Dev. heating-up rate	0.5 degree C. per minute
Horizontal adjustment	Adjustable
Power supply	220V single phase 50-60Hz
Power consumption (kwh)	3.5		4.5	5	6
Voltage fluctuation	within 10%
Gross weight(kg)	500		650	780	900
Net weight(kg)	400		550	650	770
optional	water wash recycle pump automatic plate stacker plate conveyor

---
