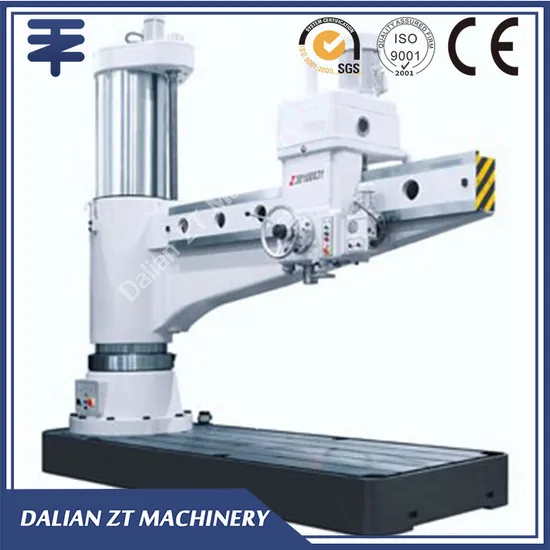

Large Size Hydraulic Conventional Radial Drilling Machine Z30100X31

Product Description

The radial drilling machine is the universal machine for general purposes, and suitable for drilling, counter boring, reaming, spot facing and tapping on mediator Large sized parts. Boring is also possible where such technological equipment is available.
Features :
1. Their adoption of hydraulic pre-selected change speed mechanism saves setting time.
2. Such motions as the forward and reverse rotation of the spindle, braking, speed changing, as well as its neutral position are controlled
by a hand lever. This facilitates easy operation.
3. A hydraulic driven rhombic block clamping mechanism is adopted for the
spindle head , the arm, the inner and outer column, which ensures reliable clamping.
4. Upper guide way on the arm, circular surface of the outer column, spindle and
its sleeve as well as the rotary path of the inner outer columns have undergone hardening treatment, so that the ratability of the machine
accuracy is retained for along time and that the service lives of the machine are prolonged.
5. Complete safety device and outer column protective device are provided in these machines.

SPECIFICATIONS	Z30100X31
Max. drilling dia.(mm)	100
Spindle center to column generating distance (mm)	570-3150
Distance from spindle nose to table surface(mm)	750-2500
Spindle travel (mm)	500
Spindle Cone	6
Range of spindle speeds(r.p.m)	8-1000
Spindle speed series	22
Spindle feeding range(r.p.m)	0.06-3.2
Spindle feeding step	16
Table size(mm)	1250x800x630
Headstock level migration distance(mm)	2580
Maximum allowable torque of spindle (N.m)	2450
Main motor power (kw)	15
Rocking shaft heave height{mm)	1250
Machine weight	20000kg
Overall dimensions(mm)	4660x1630x4525

Standard accessories:
Worktable 1 set
Foundation bolt 6 pcs
Reducing sleeve 4 pcs
Wedge 2 pcs
FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
