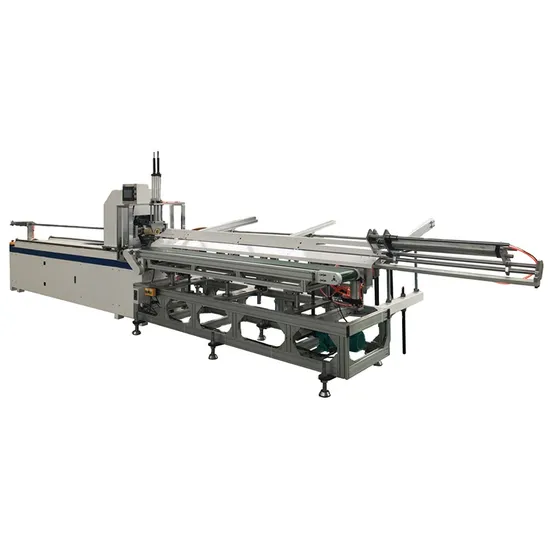

The Best Auto Loading Shaftless Paper Core Cutting Machine Paper Pipe Cutter Paper Tube Cutter

Product Description

The Best Auto Loading Shaftless Paper Core Cutting Machine Paper Pipe Cutter Paper Tube Cutter
Product Parameters

Max Paper Core Length	2000mm
Paper Core Inner Diameter	50-152mm
Paper Core Thickness	4-15mm
Cutting Length	10-2000mm
Cutting Speed	60 Cuts/Min
Turret Movement Speed	1.8 M/Min
Cutting Mode	Paper Tube Rotates, Blades and Mandrel Keep Static
Blades	Automatic Rotation
Module	2 Sets
Paper Core Preloading	Manual
Working Pressure	0.6Mpa
Voltage	380V, 3 Phase, 50Hz

Product Description

Features

Extremely simple and intuitive operation.

Automatic core length measurement.

Programmable speed setting to suit core outside and insider diameter.

Programmable edge core trimming.

The core support height is adjustable.

Automatic rotation blade to extend service life.

Automatic core feeding and gripping.

Clean edge cut without burr.

Minimal dust generation.

2 minutes of core size change.

High speed for large volume core production.

Minimize core wastage within the current program.

Single or multiple cut lengths within the same program.

High-resolution color touch screen.

Accurate cutting length with indexing accuracy of ±0.15mm.

Detailed Photos

Cutting unit
Two Set Cutting Blade Auto Rotation Blade To Extend Service Lift Module For Fitting Tube Inner Diameter
Unloading unit
Auto Unloading Tube Device 4 Pcs Tube Chunk
Security unit
Whole set machine is equipped with protective guard. Equipped with sensor when open it the whole machine will stopped immediately

Configurations

Configuration
Item	Power	Brand
Motor	3 Kw	SIEMENS
PLC		INNOVANCE
HMI		MCGS
Frequency Inverter	3.7 Kw	YASKAWA
Cutter Servo Motor	0.85KW	YASKAWA
Cutter Servo Drive	1KW	YASKAWA
Machine Head Movement Servo Motor	1Kw	YASKAWA
Machine Head Movement Servo Motor	1.3Kw	YASKAWA
Cutter Moving The Slider And Track		HIWIN
Machine Head Moving The Slider And Track		HIWIN
Cutter Mobile Screw		ABBA
Machine Head Mobile Screw		ABBA
Signal Element		HUGONG WELDERS
Electrical Components		SCHNEIDER
Pneumatic Components		SCHNEIDER

Packaging & Shipping Packaging Details: The Best Auto Loading Shaftless Paper Core Cutting Machine Paper Pipe Cutter Paper Tube Cutter is with Film wrapped and then exporting standard wooden case, 3 machines can be loaded in a 20 ft container, one year guarantee time, whole life technician support, a set of tools, a box of vulnerable parts, English operation manual.
Delivery Details: Within 45 days after receipt of 30% payment by T/T. The Best Auto Loading Shaftless Paper Core Cutting Machine Paper Pipe Cutter Paper Tube Cutter

Company Profile
Jota Machinery Industrial Co.,Ltd is a long established engineering company combined with science,research, development, production and management, It is specializing in plastic & paper packing machinery with more than 30 years experiences in China.
We supply all kinds of packaging machines tp satisfy the stringent requirements for Health and Safety, and meet the latest European CE standards. We provide customers with professional pre and after sales services, and to guarantee complete satisfaction of the equipments installed all over the world.
By Superior quality to create brand, prefect service to make satisfactory. We warmly welcome the friend from home and abroad to work with us to win a mutual benefit future.
FAQ
Our Service
Q1:what's payment terms ,trade terms you accept ?
Usually we appreciate T/T 30% deposit , then 70% balance is paid before shipment , we usually offer fob ningbo price .but we also accept other way like L/C , wetern union ,and do CFR&CIF etc.
Q2.Does it easy to operate and what can i do if it doesn't work?
First ,our machine is stable and easy to operate by one man ,what you do is just learn some basic thing like loading the jumbo roll paper,start the machine and cutting the paper.And we will sent you manual and video ,we suggest you to come to visit our factory to learn more thing by yourself , and if there is something goes wrong , you can call us ,video-chat ,email us .And we will give solutions within 36 hrs .Our engineer also can be distributed to overseas as you required.
Q4. If the machine's spare parts broken ,where can i get ?
We will give you the spare parts which is vulnerable , and some critical parts like gear box , our quality is good ,in case it broken within one year ,we will sent you for free.
FAQ
1, Are you trading company or manufacturer?
We are The Best Auto Loading Shaftless Paper Core Cutting Machine Paper Pipe Cutter Paper Tube Cutter manufacturer, and also provide the business solution to all the friends.
2, Do you have quality certificate?
Yes we have CE, SGS etc.
3,What's the The Best Auto Loading Shaftless Paper Core Cutting Machine Paper Pipe Cutter Paper Tube Cutter delivery time?
Around 20~30days, however, based on order.
4, Can you help us to buy other goods?
Sure of that, it is our honor to work for you, and control the goods quality.

---
