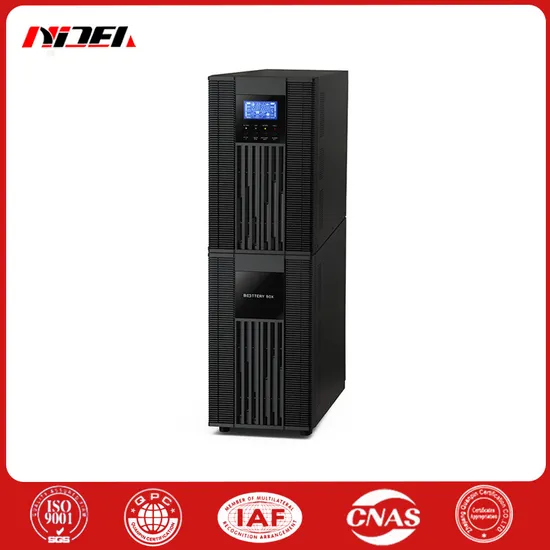

15kVA High-Frequency 100kVA Online Large Capacity UPS, Suitable for Precision Machinesups

Product Description

Xinsilu Company is a modern professional power supply manufacturer, currently having three major sales companies in Beijing, Zhejiang, and Sichuan, two major production bases in Zhejiang and Shenzhen, and five major offices in Nanjing, Zhengzhou, Jinan, Kunming, and Dalian; Professional research and development, manufacturing, sales, intelligent integrated power supply, communication power supply, UPS, inverter and other series of power supply products. New Silk Road Company has successively passed international standard management system certifications such as IS09001 quality management system, IS014001 environmental management system, ISO45001 occupational health and safety management system. Its main products have obtained model registration certificates, software copyright registration certificates, product testing reports, etc. The company has always adhered to the path of independent research and development innovation and has currently won multiple national patents. The company currently has a group of excellent engineering and technical personnel, with a spacious purification production area. We have strong technical strength and complete technological testing equipment. Xinsilu Company adheres to the spirit of "treating people with integrity, working steadfastly, pursuing excellence, and growing together", and takes "striving for excellence and excellence" as its business philosophy. It establishes the mission of "creating returns for investors, creating value for users, creating benefits for employees, and creating civilization for society". Faced with the wave of economic globalization, Xinsilu Company is closely focusing on the business strategy of "professional marketing, professional research and development, and professional manufacturing", firmly moving towards the grand goal of "building a globally renowned power brand"
Trouble Shooting If the UPS system does not operate correctly, please solve the problem by using the table below.

Symptom	Possible cause	Remedy
No indication and alarm in the front display panel even though the mains is normal.	The AC input power is not connected well.	Check if input cable firmly connected to the mains.
The icon and the warning code flash on LCD display and alarm beeps every second.	EPO function is enabled.	Set the circuit in closed position to disable EPO function.
The icon and flash on LCD display and alarm beeps every second.	The external or internal battery is incorrectly connected.	Check if all batteries are connected well.
The icon and flash on LCD display and alarm beeps twice every second.	UPS is overload.	Remove excess loads from UPS output.
	UPS is overloaded. Devices connected to the UPS are fed directly by the electrical network via the Bypass.	Remove excess loads from UPS output.
	After repetitive overloads, the UPS is locked in the Bypass mode. Connected devices are fed directly by the mains.	Remove excess loads from UPS output first. Then shut down the UPS and restart it.
Fault code is shown as 43. The icon lights on LCD display and alarm beeps continuously.	UPS is overload too long and becomes fault. Then UPS shut down automatically.	Remove excess loads from UPS output and restart it.
Fault code is shown as 14, the icon lights on LCD display, and alarm beeps continuously.	The UPS shut down automatically because short circuit occurs on the UPS output.	Check output wiring and if connected devices are in short circuit status.
Other fault codes are shown on LCD display and alarm beeps continuously.	A UPS internal fault has occurred.	Contact your dealer
Battery backup time is shorter than nominal value	Batteries are not fully charged	Charge the batteries at least 7 hours and then check capacity. If the problem still persists, consult your dealer.
	Batteries defect	Contact your dealer to replace the battery.
The icon and flash on LCD display and alarm beeps every second.	The UPS temperature is too high.	Check fans and notify dealer.

5. Storage and Maintenance 5-1. Storage Before storing, charge the UPS at least 7 hours. Store the UPS covered and upright in a cool, dry location. During storage, recharge the battery in accordance with the following table:

Storage Temperature	Recharge Frequency	Charging Duration
-25°C - 40°C	Every 3 months	1-2 hours
40°C - 45°C	Every 2 months	1-2 hours

5-2. Maintenance The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance personnel.
Even after the unit is disconnected from the mains, components inside the UPS system are still connected to the battery packs which are potentially dangerous.
Before carrying out any kind of service and/or maintenance, disconnect the batteries and verify that no current is present and no hazardous voltage exists in the terminals of high capability capacitor such as BUS-capacitors.
Only persons are adequately familiar with batteries and with the required precautionary measures may replace batteries and supervise operations. Unauthorized persons must be kept well away from the batteries.
Verify that no voltage between the battery terminals and the ground is present before maintenance or repair. In this product, the battery circuit is not isolated from the input voltage. Hazardous voltages may occur between the battery terminals and the ground.
Batteries may cause electric shock and have a high short-circuit current. Please remove all wristwatches, rings and other metal personal objects before maintenance or repair, and only use tools with insulated grips and handles for maintaining or repairing.
When replace the batteries, install the same number and same type of batteries.
Do not attempt to dispose of batteries by burning them. This could cause battery explosion. The batteries must be rightly deposed according to local regulation.
Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin and eyes. It may be toxic.
Please replace the fuse only with the same type and amperage in order to avoid fire hazards.
Do not disassemble the UPS system. 6. Specifications

MODEL			6KR	10KR
CAPACITY*			6000 VA / 4800 W	10000 VA / 8000 W
INPUT
Voltage Range		Low Line Loss	110 VAC ± 3 % at 50% Load; 176 VAC ± 3 % at 100% Load
		Low Line Comeback	Low Line Loss Voltage + 10V
		High Line Loss	300 VAC ± 3 %
		High Line Comeback	High Line Loss Voltage - 10V
Frequency Range			46Hz ~ 54 Hz @ 50Hz system 56Hz ~ 64 Hz @ 60Hz system
Phase			Single phase with ground
Power Factor			>= 0.99 at 100% Load
OUTPUT
Output voltage			208/220/230/240VAC
AC Voltage Regulation			± 1%
Frequency Range (Synchronized Range)			46Hz ~ 54 Hz @ 50Hz system 56Hz ~ 64 Hz @ 60Hz system
Frequency Range (Batt. Mode)			50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz
Overload	AC mode		100%~110%: 30min; 110%~130%: 5min; >130% : 10sec
	Battery mode		100%~110%: 3min; 110%~130%: 30sec; >130% : 10sec
Current Crest Ratio			3:1 max
Harmonic Distortion			<= 3 % THD (Linear Load) <= 5 % THD (Non-linear Load)
Transfer Time		Line Battery	0 ms
		Inverter Bypass	0 ms
EFFICIENCY
AC mode			> 92%	> 93%
Battery Mode			> 90%	> 91%
BATTERY
Standard Model		Type & Numbers	12 V / 9 Ah x 16
		Recharge Time	9 hours recover to 90% capacity
		Charging Current	Default : 1 A ± 10% Max.: 1A, 2A (Adjustable)
		Charging Voltage	218.4V ± 1%
Long-run Model		Type	Depending on applications
		Numbers	16
		Charging Current	Default: 4 A ± 10% Max.: 1A, 2A, 4A, 6A (Adjustable)
		Charging Voltage	218.4V ± 1%
PHYSICAL
Standard Model		Dimension,DXWXH(mm)	UPS unit: 500 x 438 x 88 [2U] Battery pack: 668 x 438 x 88 [2U]	UPS unit: 580 x 438 x 88 [2U] Battery pack: 668 x 438 x 88 [2U]
		Net Weight (kgs)	UPS unit: 15 Battery pack: 48	UPS unit: 18 Battery pack: 48
Long-run Model		Dimension, DXWXH(mm)	500 x 438 x 88 [2U]	580 x 438 x 133[3U]
		Net Weight (kgs)	15	18
ENVIRONMENT
Operation Temperature			0 ~ 50°C (battery life cycle will be shorten when temperature is above 25°C)	0 ~ 40°C (battery life cycle will be shorten when temperature is above 25°C)
Operation Humidity			<95 % and non-condensing
Operation Altitude**			<1000m
Acoustic Noise Level			Less than 55dB @ 1 Meter	Less than 58dB @ 1 Meter
MANAGEMENT
Smart RS-232 or USB			Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC
Optional SNMP			Power management from SNMP manager and web browser

* Derate capacity to 60% of capacity in CVCF mode and to 90% when the output voltage is adjusted to 208VAC.
**If the UPS is installed or used in a place where the altitude is above than 1000m, the output power must be derated one percent per 100m.
***Product specifications are subject to change without further notice.

FAQ
Q: Are you a factory or a trading company? A: We are a factory with a 10 year production and sales history in AC/DC power supply, uninterruptible power supply. We warmly welcome your visit.
Q: What is the delivery time?
A: Generally, the delivery time is between 7-30 days after receiving payment from the customer.
Accurate information depends on the product and quantity, and we can further communicate on this.
Q: Do you have a minimum order quantity requirement?
A: The minimum order quantity for most products is 1 set. The minimum order quantity for individual UPS is 10
Q: How long is your warranty period?
A: We provide customers with a 2-year warranty and a 1-year warranty.
Q: Can you provide customized services?
A: Yes. Since 20014, we have been involved in OEM and ODM projects.
So that we can provide professional customized services for our customers.
Q: Do you have after-sales service?
A: Yes, we have an after-sales service team.
Our after-sales engineers can provide support and guidance through video or phone when needed.
Q: Do you conduct testing after completing production?
A: Yes, our production engineer team will conduct testing upon completion of the goods, and we will provide the testing information to customers for reference before delive

---
