Automotive Seat Ventilation Blower Cubic 10025 Brushless Blower Fan

Product Details

Product Description

Product Description

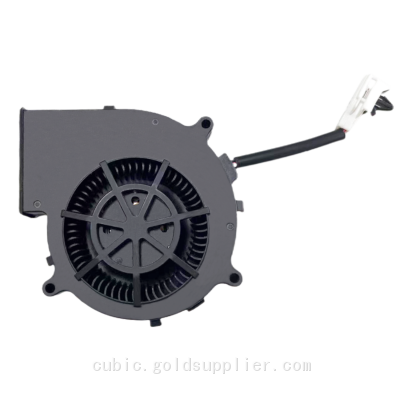

Cubic 10025 Brushless Blower Fan is specially designed for automotive seat ventilation, and other ventilation devices. With a brushless DC motor and high-strength polymer materials, this fan provides stable airflow up to 18.59 CFM and a pressure rating of 41.32 mm H2O to provide cooling and comfort via speed adjusting.
Cubic self-designed blower delivers high performance, low vibration, reduced operating noise, improved sound quality, EMC protection, and PWM speed control. This blower supports both push and pull airflow directly to the seat surface with flexible mounting options on either the cushion or backrest, and can connect to a duct or specialized structure.
Designed for automotive ventilation seat focus on cooling and comfort, this blower performs great in air flow and noise, enhancing the driving experience during the short or long journey.
Features
- High air pressure against strong system resistance in seats
- High air flow with effective cooling performance
- Low noise operation without sharp noise
- Light weight, compact construction for easy mounting
- Long lifetime, capable to meet automotive lifetime requirement
- Support flexible customization
Specifications

Rated Voltage	DC 13.5V
Start Voltage	DC 9.0V
Operation Voltage	DC 9.0~16.0V
Input Current(AVG.)	0.67(0.80 Max.)A
Input Power(AVG.)	9.05(10.80 Max.)W
Speed	3800±8% RPM
Max.Air flow At 0 Static Pressure	18.59(Min. 16.73)CFM 0.53(Min. 0.47)CMM
Max.Air pressure At O Airflow	41.32(Min.37.19) mmH₂O 1.63(Min.1.47) inchH₂O
Acoustical Noise(AVG.)	50.3dB(A)(Max.53.3dB(A)) at 1m
Insulation Type	UL: Class A
Insulation Strength	10 MEG Ohm Min. AT 500 V DC (Between Frame And(+)Terminal)
Dielectric Strength	5 mA MAX. AT500 V AC 50/60 Hz 1 Minute (Between Frame And(+)Terminal)

---
