Ahyw Hydraulic Shearing Machine 12mm Steel Plate Cutting Machine 4000mm

Product Description

Product Description Note: Dear customers, machines due to different parameters, configuration and other requirements will produce different prices, please consult customer service.
To view more products, please click on product keywords...

Main Products
Press Brake	Laser Cutting Machine	Bending Center
Shearing Machine	Handheld Laser Welder	punch and shear machine
Rolling Machine	grooving machine	punching machine

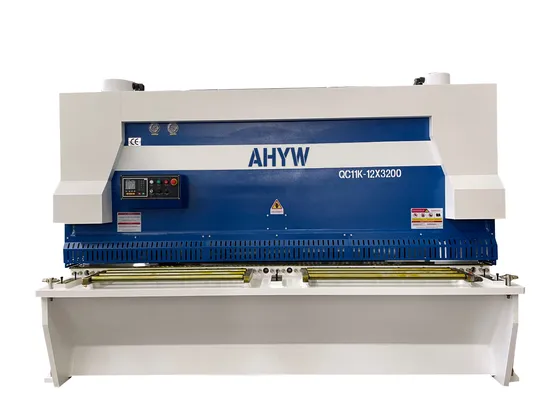

AHYW-Anhui Yawei NC Hydraulic Guillotine Shear Machine
Model: QC11K 12x3200
The Guillotine shear machine makes heavy-duty shear affordable. Frame and cutting beam offer maximum rigidity and resistance to deflection and torsional force for accurate shearing of mild steel up to 30mm.
This guillotine shear features four cutting edges that can be turned three times before grinding for increased production life. Cost-efficiently manufactured. Our guillotine shear machine fit your needs and your budget. Main features• The machine welding is made by welding plant and welding robots.
• After the welding,we make stress relief process by vibration system.
• After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy.
• All reference surfaces and connection holes are machined.Working environment
Power supply: three phase AC 380V 50Hz / customized
Ambient temperature: 0 ºC ~ 45 ºC
Relative humidity: 20% ~ 80% Details Images ESTUN E21S Controller HD LCD display, with both Chinese and English language options, a display programming parameters, faster and more convenient programming Roller Feeding Workbench Roller on the workbench can reduce friction and protect the workpiece surface; delicate design is convenient for cutting petty materials by hand. Safety Fence Protective guards on each side can protect the operator's safety, and can clearly see the shearing situation, which is safe and convenient. Presser The pressing device adopts integral circuit and independent parallel pressing cylinder. When the sheet metal is uneven, it can be freely expanded and compressed on the sheet metal, and the pressing force can also be adjusted with the sheet material and thickness, without damage to the plate surface. SHAC Ball Screw & Linear Guide High performance decelerating motor, precision SHAC ball screw and dual linear guide rail are adopted for CNC rear stop device, and the transmission positioning accuracy is less than ±0.1mm.
Rear Pneumatic Sheet Support Rear pneumatic support system provides support and allows more precise cuts by keeping the material lifted throughout the cut, avoiding hanging down the wide and thin sheets. Technical Data

Model	QC11K-12*3200
Cutting thickness	12mm MS
Cutting width	3200mm
Size	3200*2000*2050mm
Weight	7000KG

Company Profile Anhui Yawei Machine Tool Manufacturing Co.,ltd. was founded in 2005, the registered capital is 61.88 million, with 300 employee, floor space about 49999 square meters, the location is close to Nanjing Airport and near to Shanghai city.
We specializes in manufacturing and selling CNC Hydraulic Press Brake Machine, Hydraulic Shearing machine, CNC Fiber Laser Cutting Machine, CNC Robotic Arm, with over 120 different types. Our machines, which adopt advanced technology, have a high quality. The main electrical parts, hydraulic parts and the instrument of our machines are adopted the best products made by the famous manufacturer in the world.
We have passed ISO9001 quality system certification and the European Union CE certification, etc., at the same time established a perfect market service system and the system of the mature. Based on the good quality and top technology on our machines, we sell well in various countries and regions over 100 in the world such as U.S.A, Canada, Europe, South American, Middle East, and Southeast Asia market. We have more than 40 years of manufacturing and sales experience in the industry.
We also make OEM machines for our European Agent, all of the configuration on the machines will according European standard and approved by customer satisfied.
Advanced technologies, scientific management, wonderful products and approving service are kept on which we aim at.
We want to cooperate with you to promote our sales and build a long-term cooperation with you for future business.
Best wishes for you and hope a better tomorrow for all of us!
