PD16C FINCM Steel Structure Machine Hydraulic Gantry Movable Double Worktable CNC Drilling Machine 1600mm*1600mm*80mm

Product Description

Product Description
PD16C FINCM Steel Structure Machine Hydraulic Gantry Movable Double Worktable CNC Drilling Machine 1600mm*1600mm*80mm

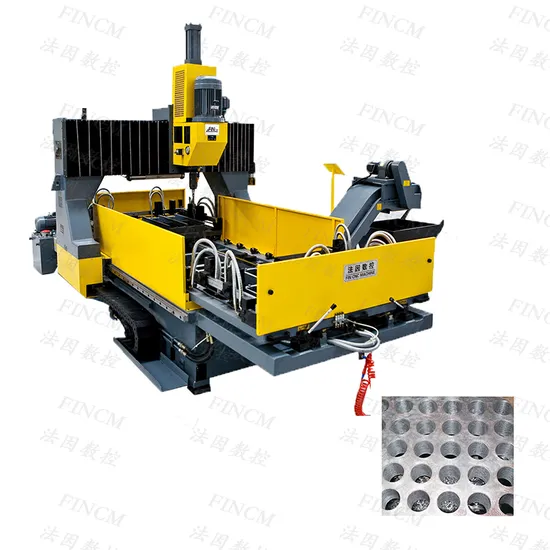

PD16C Double-worktable Gantry Mobile CNC Plane Drilling Machine.
Applicable Industry:
This machine tool is mainly used for drilling plate workpieces in steel structures such as buildings, bridges, and iron towers. It can also be used for drilling tube plates, baffles and circular flanges in the boiler and petrochemical industries.
Product Feature:
This machine tool mainly consists of a bed, a gantry, a transposition table (double table), a drilling power head, a hydraulic system, a control system, a centralized lubrication system, a chip removal system, a cooling system, and a quick-change chuck.

The gantry, bed and worktable are all welded structures, and after aging treatment, the accuracy is stable. The workpiece is clamped by hydraulic clamps, and the operator is controlled by a foot switch, which is convenient and labor-saving; the maximum processing workpiece can reach 1650×1000mm, and small workpieces can be clamped on the four corners of the worktable, which can significantly shorten the production preparation cycle and increase production effectiveness.

The hydraulic automatic control stroke drilling power head is our company's patented technology. There is no need to set any parameters before use. The conversion between fast forward, work forward and fast reverse is automatically carried out through the combined action of electro-hydraulic.
Main Technical Specifications:

Item	Name	Value
Plate Size	Thickness	Maximum 80mm
	Length x Width	1650mm×1000mm (for One piece of plate)
		825mm×1000mm ( for Two pieces of plate)
		500mm×825mm (for Four pieces of plate)
Spindle	Quick change chuck	Morse taper No. 3#,No.4#
	Drilling bit Diameter	Φ12-Φ50mm
	Speed adjustment type	Frequency Inverter stepless speed change
	RPM	120-560r/min
	Travel Length	180mm
	Feeding	Hydraulic stepless speed adjustement
Material Clamping	Clamping thickness	Min. 15 ~ Max. 80mm
	Clamping cylinder No.	12 pieces
	Clamping force	7.5KN
	Clamping open way	Foot switch
Cooling	Method	Compulsory recycling
Hydraulic Power pack	Pressure	6MPa(60kgf/cm2)
	Oil tank	100L
Pneumatic system	Compressed air pressure	0.4MPa(6kgf/cm2)
Motor	Spindle Motor	5.5kW
	Hydraulic Pump Motor	2.2kW
	Scrap Removal Motor	0.4kW
	Cooling Pump Motor	0.25kW
	X Axis Servo Motor	1.5kW
	Y Axis Servo Motor	1.0kW
Machine Size	L×W×H	About 3160×3900×2780mm
Weight	Main machine	About 4000 Kg
	Scrap Removal Device	About 400 Kg
CNC Axis	X,Y(Point position control) Z(Spindle, Hydraulic feeding)
Travel	X Axis	1650mm
	Y Axis	1000mm
Maximum Positioning speed	10000mm/min

Work Environment:
1). Power supply: 3 phases 4 lines 380±10%V 50±1HZ
2). Environment temperature: 0-40°C
3). Environment humidity: ≤75%
List of the Key Outsourced Components

No.	Name	Brand	Country
1	Linear guide rail	CSK	Taiwan (China)
2	Hydraulic pump	Just Mark	Taiwan (China)
3	Electromagnetic valve	Atos	Italy
4	Servo motor	Inovance	China
5	Servo driver	Inovance	China
6	PLC	Inovance	China
7	Computer	Lenovo	China

Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
