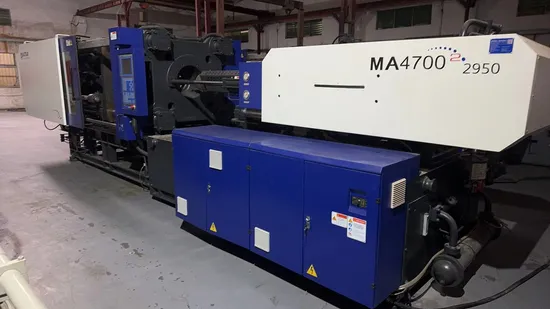

Fruit Basket Injection Molding Machine Haitian Ma 470 Tons Injection Molding Machine

Product Description

product name:
The servo MA II 160t is used for plastic injection molding machine
Specification:

MA4700 II /2950
Injection Unit		B
Screw diameter	mm	80
Screw L/D ratio	L/D	20
Shot size (theoretical)	cm^3	1860
Injection Weight (PS)	g	1693
Injection rate (PS)	g/s	471
Injection pressure	Mpa	158
Plasticizing rate (PS)	g/s	72.5
Screw speed	rpm	0-170
Clamping Unit
Clamping force	KN	4700
Toggle Stroke	mm	780
Space Between Tie Bars	mm	820×800
Mold height max	mm	780
Mold height min	mm	320
Ejector stroke	mm	200
Ejector force	kN	110
Others
Max.Pump Pressure	Mpa	16
Pump motor power	KW	45
Heater power	KW	31.5
Machine dimension (l x w x h)	m	8.1X1.9X2.3
Machine weight	t	18.5
Hopper capacity	kg	50
Oil tank capacity	l	830

Custom service We have a number of professional engineers, which could customize the machine you need according to your needs, and save you money To produce the products you want.
Thank you for coming, hope we can become partners and friends
How to contact us
Contact: Jerry


FAQ
FAQ 1.Q: Are you a manufacture or a trading company?
A: We are a trading company in Shenzhen city, Guangdong Province, China
2. Q: Why should i choose your company and your products?

A: We have been in this field for more than 20 years, and our quality is good. Due to our good quality ,some of the famous companies are also using our products ,such as ,Apple ,Foxconn, BYD, etc.
3. Q:Do you accept customization service?

A:Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will try our best to meet your needs.
4. Q:What is the order process?

A: Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after sale service.
5.Q: I want make a plastic product, but I don't know how to choose a suitable machine model, what should I do?

A: Please feel free to tell us about the product detail information, such as size weight, how many output you prefer per hour. We will help make good proposal with nice price for you.

---
