Chinese Cheap Best Quality Plastic Pressure Former

Product Description

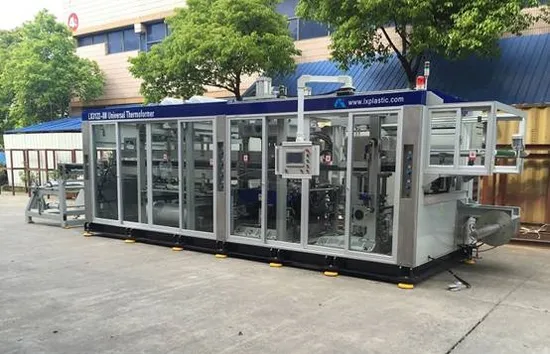

BRIEFHF-IM chinese cheap pressure former is a trim-in-place type thermoforming machine which takes advantage of mould with rules steel knife for performing forming and cutting in the same station. and the second and the third cut-station are available for performing fuction of post-trim and hole-punch.

it is perfect for making part of PP PET PS etc and completely automatically produces disposable rectangular or square or round shaped roll-edged containers and trays with forming, trimming, and stacking conveying on one operation cycle.

Design Featurechinese cheap pressure former Use Steel-Rule-knife for performing forming and cutting in the same station
Trim-in-place for processing PP PET PS PVC BOPS material etc. specially perfect for PP .
Second cut-press and Third cut-press are available for hole punching and post-trim
Automatic stacking ,counting unit and conveying system
Trim-in-place for parts with rolled edge (turn-down lip)
Technology of trim-in-place brings a neat and identical trimming(cutting)
Plug assistant for deep forming of draw
Floating knife and free knife are available for post-trimming film with high shrinkage rate.
Extra Contact Heat plate for Minimizing power consumption is available.

Specification	LX3122IM
Mould Area	800*600mm Max
Depth of Draw under sheet	120 mm Max
Depth of Draw above sheet	30mm Max/120mm Max
Clamping force	750KN
The Second Cut-Press	Available
The third Cut-Press	Available
Suitable material	PP PET PS PVC BOPS
Sheet Width	460- 850 mm
Material Thickness Range	0.2-1.5mm
Material Roll Diameter	1000 Max
Dry run Speed	45cycles/min Max.
Power Supply	3-N AC380V±15V ,(others at request)
Power Consumption	Approx.35kilowatts/hr
Air Pressure	0.7Mpa
Air Consumption	2500 Liters/min
Cooling Water Consumption	13 Liters/min 15° - 20°C
Dimensions	9.5m*2.2m*2.2(L*W*H)

Trim-in-place IM-2in1

Trim-in-place with second cut-press IM-3in1 (optional)

Trim-in-place with second cut-press and third cut-press IM-4in1 (optional)
