Pigment Grinding Machine Three Roller Mill MOQ 1 Set

Product Description

pigment grinding machine three roller mill MOQ 1 set

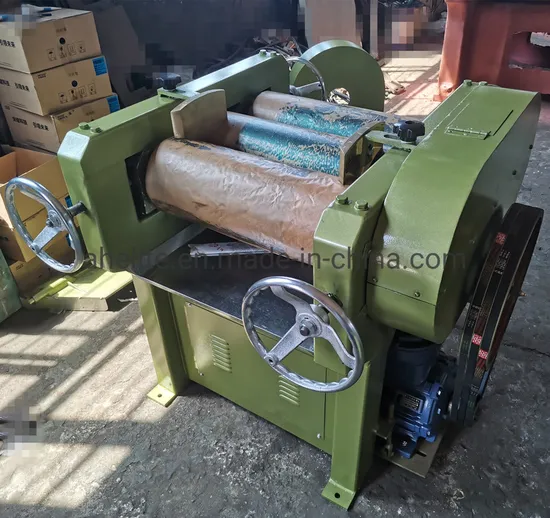

THREE ROLLER MILL
Introduction and application: This machine is mainly used in various kinds of paints, coating, ink, plastic, pigment, food etc... It is especially suitable for grinding products with high dispersion viscosity and fine particle size.
It is made of chilled gold-plated cast iron. The crystal phase is tight. High strength, high hardness and wear resistance on the surface. There is also a cooling system. The machine selects the gap between the three rollers in the horizontal direction by rotating the hand wheel and the mutual extrusion of the roller surface and the friction at different speeds to select the effect of the grinding dispersion.
Main technical parameter

Model parameter			S65	S100	S150	S200	S260	S315	SM405	SM405L
Diameter		mm	65	100	150	200	260	315	405	405
Length		mm	125	250	300	500	695	755	810	1000
Roller speed	Slow	r/min	32	28	28	19	19	19	15	15
	Mid	r/min	59	66	66	55	55	55	45	45
	Fast	r/min	250	152	152	155	155	155	135	135
Power		kw	0.55//0.75	1.5	2.2	4.0 or 5.5	7.5	11	15	22
Parametric efficiency		kg/h	5	30	60	100	180	250	350	430
Dimension		mm	400×420 ×400	680×600 ×700	820×800×920	1180×1350 × 1100	1650×1350× 1100	1720×1550× 1180	2100×1950× 1350	2290×1950× 1350
Weight		kg	80	300	500	800	2300	2800	5218	5500

---
