Basic Info.
Spindle Number
Single-Spindle
Certification
CE, BV, TUV
Model
5 Axis CNC Milling Machine Wood / Mould Sculpture
Applications
Wood, EPS Foam, Plastic, Aluminium
Structure
Heavy Duty Wall Structure
Tool Magazine
Disk Type/Linear Type, 8 Tools Ability
Motor
Yaskawa Servo Motor
Control System
Osai or Syntec 5 Axis
X.Y Structure
Rack and Pinion, Linear Sqare Rail
Z Structure
Rack and Pinion, Ball Screw
Transport Package
Protected by Film and Fastened by Metal Wire
Specification
5 Axis CNC Milling Machine Wood / Mould Sculpture
Production Capacity
100 Sets / Month
Product Description

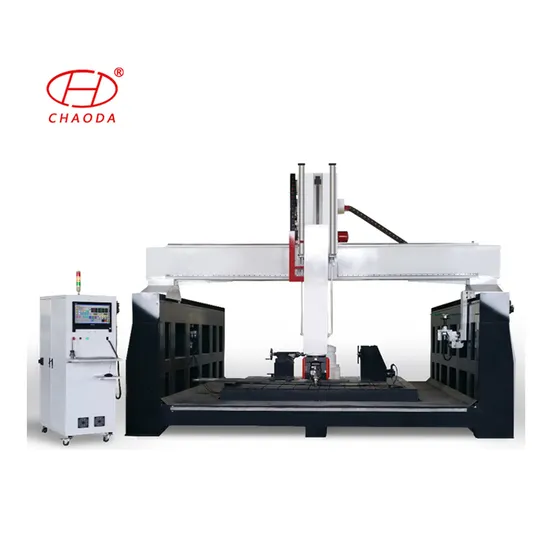

5 Axis CNC Milling Machine Wood / Mould Sculpture CNC Milling Machine 5 Axis
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Heavy duty steel wall structure, keep machine with very good stability. Adopt disk/linear type automatic tool changer with 8 tools magazine, spindle change tools automatically,no need manual work. High z axis design, suitable for large scale three dimensional surfaces machining. With a big rotary device, can process different kinds of 3d sculptures,statues,columns.
| Model No. | JC1530-5AXIS |
| X,Y,Z,A,C working size | 1500*3000*1000mm* ±120°* ±245° |
| Whole structure | heavy duty steel wall structure |
| Table surface | T-slot with clamps (option: vacuum table) |
| Spindle | 10KW ATC spindle, cooled by liquid |
| Tool magazine | Disk type automatic tool changer, with 8pcs tool magazine |
| Driving system | Japan YASKAWA servo motor and driver |
| Inverter | Delta |
| Operating system | 5 axis Syntec (option:OSAI) |
| Operation language | G code |
| Working voltage | AC380V, 3-phase, 50Hz |
| Running environment | Temperature: 0ºC-45ºC; Relative humidity:30%-75% |
It can work on many materials like Marble, Granite, Artificial Stone, Terrazzo, Limestone, Sandstone, Travertine, Quartzite, Slate,
Grindstone ,Jade, Crystal, Glass, Acrylic, Wood, PVC, EPS Foam, Aluminum composite panel, Aluminum block, Copper and so on.
1. Sample testing before shipment2. Provide 2 days free training for each machine3. 12 months warranty for each machine4. Friendly English version manual and operation videos for studying5. Free technical support by phone,email,chatting or remote6. Engineers available to service machinery overseas
>>
