Hb Series Helical Bevel Gearbox Right Angle Gearbox Agricultural Gear Box with Hollow Bore Shaft

Product Description

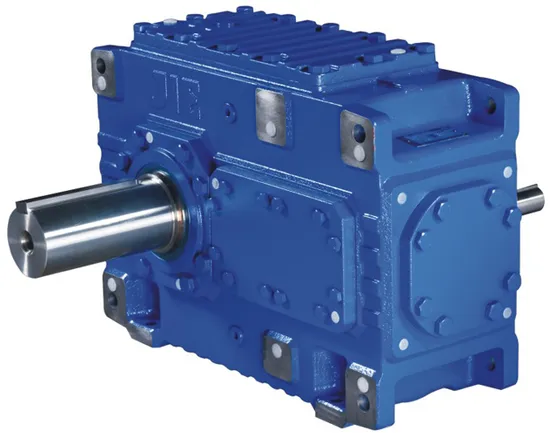

HB Series Helical Bevel Gearbox Right Angle Gearbox Agricultural Gear Box with Hollow Bore Shaft
Description:
HB series right angle helical bevel industrial gear units have compact structure, flexible design, outstanding performance, and multiple standard options to meet clients specific application requirements.
The bevel helical gearbox is an industrial heavy duty gearbox, universally applicable to high power and high torque working conditions. It adopts rigid cast iron housing and the whole structure is compact in modular design. The bevel helical gear unit is characterized by high strength, improved running reliability and increased transmission efficiency. We can provide flange-type output shaft to enable the installation in small spaces.
Characteristics:
1. HB series industrial heavy duty helical gearboxes adopt a general design scheme, which can be transformed into industry-specific gearboxes according to customer requirements.
2. Realize parallel axis, straight axis, vertical and horizontal universal box, reduce the types of parts, and increase the specifications and models.
3. Adopting sound-absorbing box structure, large box surface area and large fan, cylindrical gear and spiral bevel gear all adopt advanced gear grinding technology to raise the temperature of the whole machine. The noise is reduced, the reliability of operation is improved, and the transmission power is increased.
4. Input mode: motor connection flange, shaft input.
5. Output mode: solid axle with flat key, hollow axle with flat key, hollow axle with expansion disk, hollow axle with spline connection, solid axle with spline connection, and the solid shaft of flange connection.
6. Installation methods: horizontal, vertical, swinging base, and torsion arm.
7. HB series industrial heavy-duty helical gearbox products have 3-26 specifications, the speed ratio is 1.25 - 450 and the speed ratio is 1-4 grades, and the combination of R, K, F, and S series can get a larger speed ratio.
Parameters:

Housing:	Cast Iron or Steel Plate Welding
Gear Set:	H Series Parallel Shaft Gear Units - Helical Gear Pairs B Series Right Angle Gearboxes - Helical Gear Pairs & Spiral Bevel Gear Pairs
Input Configurations:	Keyed Solid Shaft Input IEC-normalized Flange Motor Adaptor
Output Configurations:	Single and Double Keyed Solid Shaft Output Keyway Hollow Shaft Output Splined Hollow Shaft Output Hollow Shaft Output with Shrink Disc Hollow Shaft Output with Mounting Flange
Installation:	1. Foot Mounted 2. Flange Mounted 3. Shaft Mounted
Lubrication:	Oil Dip and Splash Lubrication (Additional Compensation Oil Tank) Forced Lubrication (Additional Oil Pump)
Cooling:	Natural Cooling Auxiliary Cooling Devices (Cooling Fan, Cooling Coils)

Applications:
The gears of the HB series industrial helical gearboxes are made of high-strength low carbon alloy steel by carburizing and quenching. The surface hardness of the gears is high. The gears are all ground by the NC grinding process, with high accuracy, good contact, high transmission efficiency, smooth operation, and low noise. It can be widely used in the following industries:

Power Plant Equipment	Metallurgical Industry	Metal Forming Machinery
Petrochemical Industry	Mining Machine	Hoisting Machinery
Construction Industry	Cable Industry	Environmental Protection Industry
Food Machinery

Packing & Delivery:
Inner Packing: PP bag with carton;
Outer Packing: Wooden case;
Shipment: 20-30 days upon receiving the deposit.
FAQ:
Q 1: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in manufacturing various series of couplings.
Q 2: Can you do OEM?
A: Yes, we can. We can do OEM & ODM for all the customers with customized artworks in PDF or AI format.
Q 3: How long is your delivery time?
A: Generally, it is 20-30 days if the goods are not in stock. It is according to quantity.
Q 4: How long is your warranty?
A: Our Warranty is 12 months under normal circumstances.
Q 5: Do you have inspection procedures for coupling?
A: 100% self-inspection before packing.
Q 6: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.

---
