Z3032*10 China Ce Small Radial Drilling Machine

Product Description

Z3032*10 China Ce Small Radial Drilling Machine

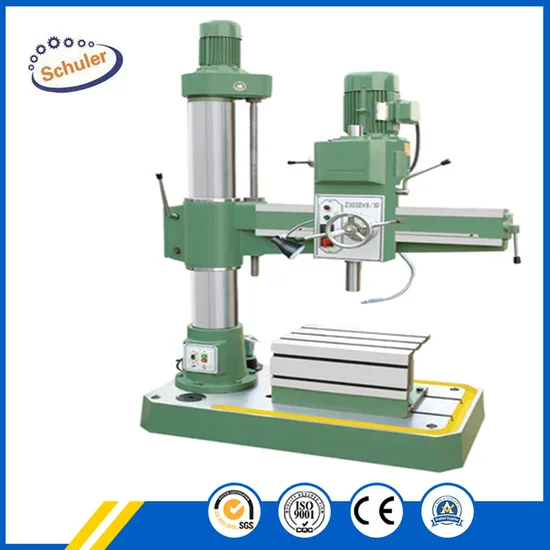

Product picture:
Drilling Machine Features:
The radial drilling machine model Z3032,Z3040,Z3050, Z3063, Z3080 is a new series with diversified functions of product which has been designed and accomplished referring to the intermational standards (ISO) CE in the recent years. In this machine, hydraulic preselection speed and feed change mechanisms are adopted.
The spindle head, radial arm and columns are clamped by the hydraulic clamping mechanisms, and the forward, reverse, stop (braking), as well as the setting of spindle in neutral position are all controlled by a single-lever, the machine has the characteristic features of perfect performance, safe, reliable and easy operation, convenient maintenance, high accuracy, ample rigidity and long service life. It is used for drilling, counter boring, spot facing, reaming, tapping and boring. It is the machine widely used in every department of mechanical machining.
Drilling Machine Technical Parameters:

Model	Unit	Z3032×10
Max. Drilling diameter	mm	Steel Φ32 iron Φ32
Tensile strength	Mpa	500-600
Column diameter	mm	200
Distance between spindle centerline and column	mm	200-910
Horizontal moving distance of spindle box	mm	710
Distance from Spindle nose to base surface	mm	330-1060
Rocker arm lift distance	mm	730
Spindle travel	mm	120
Spindle taper		Morse 4
Spindle speeds	R/min	108 162 262 398 665 1000
Spindle feeder	Mm/r	0.10 0.16 0.25
Maximum feed resistance of Spindle allows N		5300
Rocker arm lifting speed	M/min	1.21
Swing angle of rocker arm	°	+ 180
Spindle motor power	kw	1.5/2.2
Liftting motor	kw	0.55
Coolant power	kw	0.04
Net weight	kg	1080
Machine size	mm	1400×660×2060

Drilling Machine Details:
Drilling Machine Assembly workshop:
Drilling Machine Package delivery:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Edwin
Tel:+86 18663288651

---
