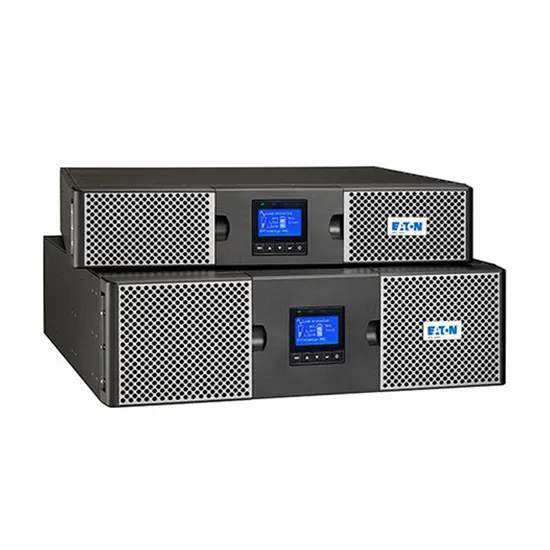

| Eaton 9PX UPS Technical Specification |
| Technical specifications | 1500VA | 3000VA | |
| Rating(VA/W) | 1500VA/1500W | 3000VA/3000W | |
| Format | RT2U(tower/rack 2U) | RT3U(tower/rack 3U) | |
| Electrical characteristics |
| Technology | On-line double conversion with Power Factor Correction (PFC) system |
| Nominal voltage | 200/208/220/230/240V |
| Input voltage range | 176-276V without derating (up to 100-276V with derating) |
| Input frequency range | 40-70Hz, 50/60Hz autoselection, frequency converter mode |
| Efficiency | up to 92.5% in online mode(up to 97.5% in Hi-efficiency mode) | up to 94% in online mode (up to 98% in Hi-efficiency mode) |
| Connections |
| Input | 1 IEC C14(10A) | 1 IEC C20(16A) |
| Outputs | 8 IEC C13(10A) sockets | 8 IEC C13(10A) sockets+2 IEC C19(16A) sockets |
| Batteries |
| Typical backup times* | 300W | 500W | 800W | 1200W | 1800W | 2500W |
| 9PX 1500 | 38 | 23 | 13 | 7 | | |
| 9PX 1500+1 EBM/+4 EBM | 143/536 | 86/319 | 52/192 | 32/120 | | |
| 9PX 3000 | 60 | 36 | 22 | 13 | 7 | 4 |
| 9PX 3000+1 EBM/+4 EBM | 221/824 | 135/504 | 83/307 | 52/194 | 33/122 | 22/82 |
| Battery management | ABM®& temperature compenseted charging method(user selectable), automatic battery test, deep discharge protection, automatic recognition of external bettery units |
| Communication |
| Communication ports | 1 USB port + 1 serial RS232 port +1 mini-terminal block for remote ON/OFF +1 mini-terminal block for remote power off+ 1 mini-terminal block for output relay |
| Communication slot | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards |
| Operating conditions, standards and approvals |
| Operating temeprature | 0 to 40ºC |
| Typical noise level | 35dB | 40dB |
| Safety | IEC/EN 62040-1, UL 1778, CSA22.2 |
| EMC | IEC/EN 62040-2, FCC Class B, CISPR22 Class B |
| Approvals & markings | DNV-GL Type approved / CE / CB report(TUV) / cULus / EAC / RCM / KC / Energy Star |
| Dimensions H × W × D in mm/Weight |
| UPS | 86.5*440*450/18.9kg | 130*440*485/27.4kg |
| EBM | 86.5*440*450/29.8kg | 130*440*485/38.2kg |
| Customer service and support |
| Warranty | 3 years on electronics,2 years on batteries |
| *Backup times are approximate and may vary with equipment. configuration, battery age, temperature, etc. |
