US$15,000.00-200,000.00
|
1 set
(MOQ)
|
Basic Info.
Automatic Grade
Semiautomatic
Transport Package
Plastic Film Package Loaded in Whole Container
Production Capacity
1000 Sets/Year
Product Description

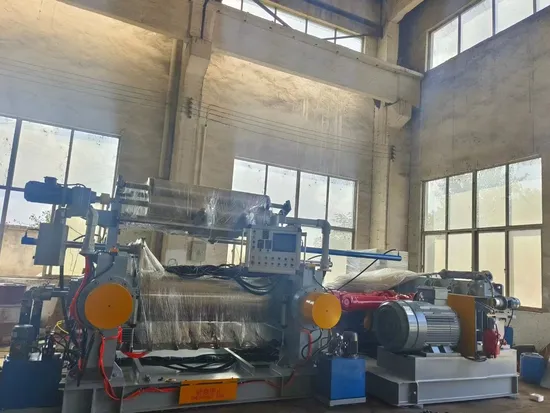

Product Description Hydraulic Rubber Roll Mill is with hydraulic roll gap adjustment, the variable roll gaps for rubber mixing, rubber thinning through and rubber sheeting can be easily set on the touch screen, digital display, more precise roll gap control. Compared with the traditional mechanical worm gear type roll gap control device which is of high friction during adjustment, and the gear gaps could gradually becomes larger after a long time of use, so the roll gap control becomes less and less accurate gradually.
In contrast,because hydraulic control device adjust the roll gap by drive cylinder moving back and forth horizontally, it is almost frictionless,so it is very durable to keep its working stability,ensuring accurate gap even after many years use.
Besides, the hydraulic roll gap can be adjusted during rubber mixing.And the hydraulic roll gap is able to expand or shrink according to different types of rubber with regarding their different hardness,viscosity and elasticity,etc, and it will be adjusted to the set roll gap automatically . Product Parameters
Model | XK-H-360 | XK-H-400 | XK-H-450 | XK-H-550 | | XK-H-610 | XK-H-660 | |
Diameter of rolls | 360 | 400 | 450 | 550 | | 610 | 660 | |
Working length of roll | 900 | 1000 | 1200 | 1500 | | 1830 | 2130 | |
Working speed of front roll | 17.4 | 19.3 | 23.1 | 28.6 | | 30.1 | 32.45 | |
Fraction ratio of rolls | 1:1.27 | 1:1.27 | 1:1.27 | 1:1.29 | | 1:1.18 | 1:1.09 | |
Max.gap(mm) | 10 | 10 | 10 | 15 | | 15 | 15 | |
Nip regulating mode | Manual/hydraulic | Manual/hydraulic | Manual/hydraulic | hydraulic | | hydraulic | hydraulic | |
Batch capacity (Kg) | 15-20 | 25-35 | 30-50 | 50-60 | | 75~110 | 120-160 | |
Motor power (KW) | 30 | 45 | 55 | 90/110 | | 160 | 180 | |
Reducer |
Overall dimension (LxWxH:cm) | 3890x170 X140 | 449x170 X175 | 557x190 X175 | 629x233 X178 | | 720x 240x190 | 750x 363x208 | |
Weight (kg) | 7600 | 9000 | 11500 | 20000 | | 35000 | 45000 | |
Exhibition
Packaging & Shipping The rubber roller mill machine is packaged well by the stretch film first,and fixed professionally by the strong (solid) steel wire ropes,ensuring the machines remain still and won't slide in the container during the long distance of land and sea transportation, and reach the clients factories safely.
Installation Instructions We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Mold a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
>>
