C11000 Copper Sheet Strip for Battery and Radiator

Product Description

C11000 Copper Sheet Strip for Battery and Radiator
1.
Production Specifications

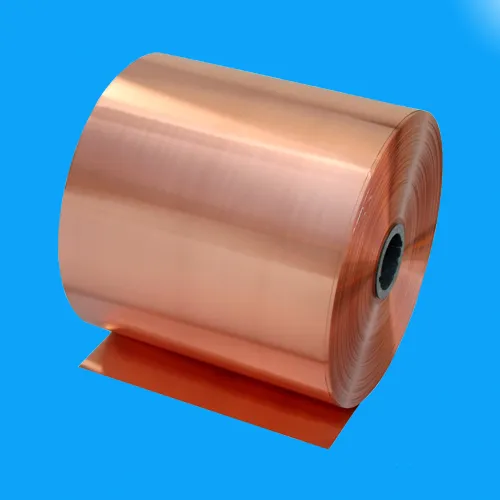

The copper strip is in form of rolls. It is used for a variety of applications including construction and architecture,
auto manufacturing, electrical components, marine applications and HVAC systems. The high purity (99.92-99.97%)
of copper strip and rolls provides the premium quality needed f or many projects and applications in a wide range of
industries and uses.
Copper strip and rolls are in red and pink color and is known for its excellent malleability and ductility. Copper strip
and rolls provide excellent strength, good corrosion resistance, superior electrical conductivity and non-sparking
capabilities.
Our copper strip is available in thickness from 0.05mm to 3.0mm. The copper foil is in thickness from 0.05mm to
0.15mm, and copper strip or rolls is in thickness from 0.15mm to 3.0mm. The temper of copper strip and rolls is in
1/4 hard, 1/2 hard, 3/4 hard, hard and annealed. Our copper strip ad rolls are produced according to
ASTM B152 standard.
Product Pictures
Chemical Composition & Mechanical Property

Copper Alloy	Chemical Composition		Temper	Mechanical Property
	Copper %	Phosphorus %		Tensile Strength MPa	Elongation %
C11000	≥ 99.90	/	1/4 Hard	235-295	≥ 25
C11000	≥ 99.90	/	1/2 Hard	255-315	≥8
C11000	≥ 99.90	/	3/4 Hard	285-345
C11000	≥ 99.90	/	Hard	295-360	/
C11000	≥ 99.90	/	Annealed	205-260	≥ 30

Electrical Conductivity

Copper Alloy	Copper %	Temper	Electrical Conductivity IACS %
C11000	≥ 99.90	Annealed	≥ 100
C11000	≥ 99.90	1/4 Hard, 1/2 Hard, 3/4 Hard, Hard	≥ 97

Copper Foil Size Range

Copper Alloy	Temper	Size (mm)
		Thickness	Width
C11000	Hard, 3/4 Hard, 1/2 Hard, 1/4 Hard, Annealed	0.05- 0.15	≤600
