8 Axes Automatic CNC 3D Wire Head Zigzag Bending Machine

Product Description

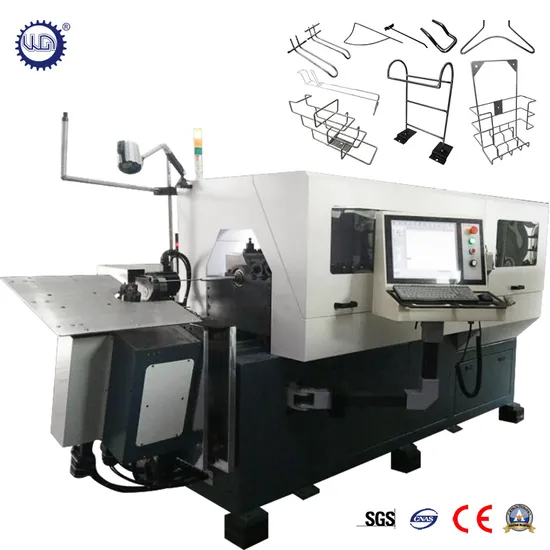

8 Axes Automatic CNC 3D Wire Head Zigzag Bending Bender Machine Product Description CNC automatic 3D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Advantages & Features:
1.3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable. 2.Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.
Application field:
1. Auto Industry area
2. Metal wire industry
3. Display table and cargo shelf
4. Furniture and Kitchen
5. Hardware industry
6. Mattress, Sofa spring area
7. Architecture area
Technical Parameter:

Model	GT-WB-100-8A
Wire size(mm)	5.0-10.0
axis	8
feeding roller number	4 pairs
wire turning angle	unlimited
platform lifting height	25-120mm
twisting head lift height	20-80mm
distance between cutting and bending head	305mm
distance between bending head and machine body	800mm
out twisting lifting height	/
left to right moving range	/
Feeding front and back moving range	/
machine size(cm)	380x140x170
machine weight(kg)	4800.0

8 Axes Automatic CNC 3D Wire Head Zigzag Bending Bender Machine


Packaging & Shipping

---
