AYO SKO HYO OD Mounted Hydraulic Flange Facing Machine

Product Description

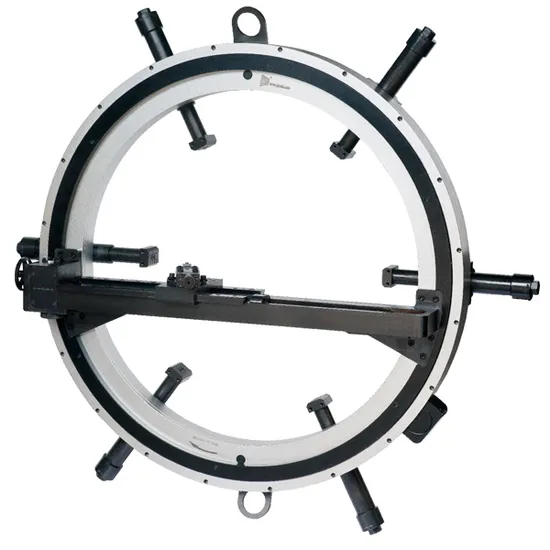

AYO SKO HYO OD Mounted Flange Facing Machine
Overview
The OD mounted flange facing machine is designed for the flange face, seal groove and serrated finish, weld prep and counter boring. With the latest line and ball screw technology, the equipment adopts the modular design concept as a whole. Each step of design takes the field processing as the starting point. This machine is widely used in the flange connecting of petroleum, chemical, natural gas and nuclear power. With the light weight, this machine is helpful for the on-site maintenance. It ensures the high security and efficiency.
Features
Boring and milling tools are optional
Driven motor: Pneumatic, NC driven, Hydraulic driven
Working range 0-3000mm, Clamping range 150-3000mm
Light weight, easy to carry, fast installation and easy to use
Stock finish, smooth finish, gramophone finish, on flanges, valve seats and gaskets.
High quality finish can be achieved.
The feed of cut is automatic from the O/D inwards.
Standard stock finishes carried out with step: 0.2-0.4-0.6-0.8 mm.
The key words of this product: Flange machine Flange facing machine
Model and Specification

Model			Clamping Range	Working Range	Tool Stroke	Rotating
Pneumatic	NC/Electric	Hydraulic	OD mm	mm	mm	rpm
AYO-500	SKO-500	HYO-500	Ф150-500	Ф100-500	≤110	34
AYO-1000	SKO-1000	HYO-1000	Ф500-1000	Ф200-1000	≤110	24
AYO-1500	SKO-1500	HYO-1500	Ф1000-1500	Ф500-1500	≤110	23
AYO-2500	SKO-2500	HYO-2500	Ф1500-2500	Ф1000-2500	≤110	23
AYO-3000	SKO-3000	HYO-3000	Ф2000-3000	Ф1000-3000	≤110	23

Above parameters just for reference only, not acceptance criteria.
Power Supplies

Pneumatic Air requirement: 1500-3000L/min @0.63-0.8Mpa Power: 2HP, 3HP, 4HP Double motor for big model or heavy duty

NC Electric requirement: 230V 1PH 50/60Hz; 380V 3PH 50/60Hz Power: 2.0KW or 3.0KW Double motor for big model or heavy duty

Hydraulic Hydraulic requirement: 28-50L/min @13Mpa Electric requirement: 380V 3PH 50/60Hz Rated pressure: 13MPa Rated flow: 28L/min Max. Torque: 380NM

Insert Style
Material: Holder HSS
Insert: HSS-Co or Carbide
Type: Grooving, Facing

---
