Jwell Plastic 500L1000L China Manufacturing Water Storage Tank Drum Barrel Container Extruder of Plastic Pallet/Cover Blow Molding Machine

Product Description

Product Description

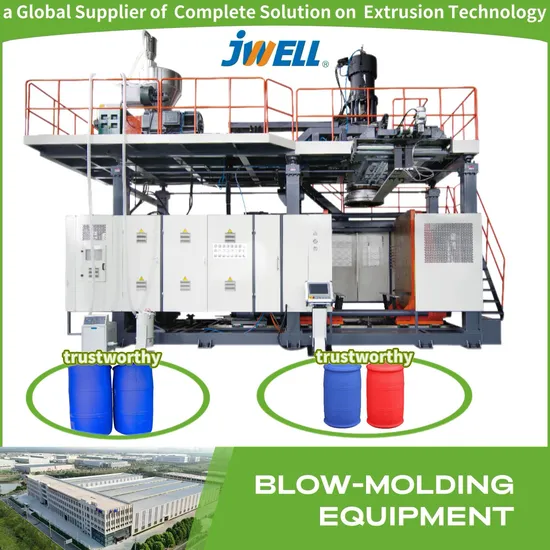

JWELL-BM500/1000 Blow Molding Machine
Single screw extruder/parison controler /blowing pin device/ Accumulate type die head/ Mold open and close device /Take out robot / Hydrauic systm/ Pneumatic system/ Electricalsystem
Control system:SIEMENS human-machine interface
Human-machine interface control panel screen has such functions as follows: visual display providing the best support to easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, the malfunctions can be displayed on the screen.
B&R Austria human-machine interface and parison programmer,can adjust within 300 points. Parison control system uses MOOG 100 points parison programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.
Product photos
Technical parameters

Technical parameters
Model	Unit	JWELL-BM500	JWELL-BM-1000
Max product volume	L	500	1000
Dry cycle	Pc/h	250	155
Die head structure	--	Accumulating type
Main screw diameter	mm	120/135	120*2
Max plasticizing capacity (PE)	kg/h	400	700
Driving motor	Kw	132/160	132*2
Accumulating volume	L	45/60	75/90
Oil pump motor power(Servo)	Kw	45	45
Clamping force	KN	1800	13000
Space between platen	mm	950-2000	1000-2700
1000-2700Platen size W*H	mm	1600*1600	1800*1800
Max.mould size	mm	1400*1600	1600*1800
Heating power of die head	Kw	50	65
Machine dimension L*W*H	m	10.4*8.2*6.5	14*12*8.5
Machine weight	T	45	70
Total power	Kw	265/325	460
Note: nformations isted above are for reterence onlv, the production ine can be desianed ov customer's reauirements.

packaging&Shipping
In order to ensure the integrity of the goods in long-distance transportation, to avoid damage to the goods in sea transportation and corrosion of the sea water to the goods, to avoid damage in the process of freight transportation, we use the outer package-wooden box and the inner package-plastic wrap packaging to ensure the safety of the goods.If you have special needs, you can also tell us, we will do our best to do and let you rest assured

Company Profile
JWELL is a global supplier of complete solutions on extrusion technology.
Oriented from Shanghai, JWELL Mlachinery Co., Ltd is the largest manufacturer of extrusion machinery in China, its 8production bases are located in Jiading District of Shanghai, Zhoushan City of Zhejiang Province, Taicang city of jiangsuProvince, Liyang City of Jiangsu Province, Haining city of Zhejiang province,Chuzhou City of AnHui Province, Quaniao cityof AnhuiProvince and Thailand. Totally covering areas more than 1,000,000 square meters.t has more than 3000staffs, about 580 technicals and managing staffs with over 500 national patents, We produce more than 3000 advancedextrusion lines every year, which were exported to 120 countries and regions over the world. Jiangsu Jwell Intelligent Machinery Co., Ltd. is a high-tech manufacturer dedicated to the research, development and manufacture of plastic extrusion equipment. Our main products are all kinds of plastic sheet, plate, film extrusion equipment. We not only have professional R&D team, experienced technicians, but also advanced production and processing base and standardized assembly workshop. Our customers are all over China as well as overseas countries and regions. Based on the enterprise spirit of "Excellent Quality, Perfect All", we are constantly exploring the new field of extrusion.
