Product Description
Product Description

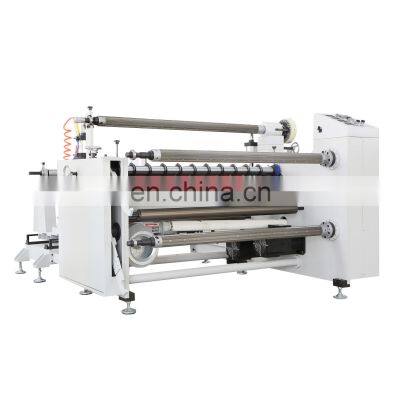

nonwoven slitter rewinder for laminating and slitting tooling of industrial adhesive tape etc This machine enjoys photoelectric track and rectification system ,and the magnetic powder clutch is adopted to control the feeding and receiving tension .Main machine is of frequency conversioin speed regulation ,and rhe movement of the rubber covered roller is controled by the cylinder .Sticking can be done solely ,enjoying characteristics such as fast slitting speed ,ease of operation and maintenance.modelDP -650DP -1600max feeding width (mm)6501600main engine power (kw)2.26 (two motor )speed (m/min)8080size (mm)2400*1700*13002400*2300*1300weight (kg)10001500rewinding diameter (mm)600800winding diameter (mm)450450precision (mm)±0.1±0.1power (v)220V50HZ380V50HZ Configuration ListMachine Name :DP-1600 Slitting Machine(Two Motor)1. Technique Data Machine Speed : 130m/minMax material diameter : 1600mmFeeding Diameter : 800 mmRewinding diameter : 450mmSlitting accuracy :±0.1mmVoltage:380V 50HZMain Motor Power :5.5kw (2 motor power) Total Power: 8kw Raw material Max hole diameter: 3”compress air source:(0.4-0.6)Mpa(customer-owned)Finished products Min. Width by standard slitting :25MMMain Machine size :2400*2300*1300mmFeeding Machine size : 1950*880*780mmWeight : 2.2T2, Feeding DeviceFeeding Air Expansion Shaft (3”Pad Shaft) 2 Setsmagnetic powder brake 100N 1 Set Film release Magnetic Powder Brake 50N 1 SetFeeding Tension Control System 2 SetsCorrection System(Taiwan Gas and Liquid correction) 1 set 3, Renewal Material Laminating Part :Upper Laminating COTS Dia.135(PU) 1 SetUnder Laminating COTS Dia.135(PU) 1 SetAluminum guide roller(hard Oxygen surface treatment) 1 SetPressure roller pneumatic type top and bottom system adjustable : 1 Setelectronic counter 1 SetFilm Release tensioning adjustable system 4. Reeling endReceiving Flatulence axis(3″Pad shaft) 2 Setsmagnetic powder clutch 50N 2 Setshe receiving tension control system 2 SetsMain electrical machine (double motor) 1 SetMain Power inverter 1 SetWinding shaft and pneumatic up and down device(Rise,descend ,support) 1 Set5. Operator control box 1 Set6.Electric control panel 1 Set7. Function Profilefrequency control of motor speed, operation more easy. Control more accurate. Double receiving roller center take up , rewindingDouble receiving magnetic powder tension independent control, can rewinding at the same time , and also can individual useElectronic meter counter with the function of automaticly count the meter and setting length, automatic stopping ,accuracy 0.01, error ±0.15MIndependent fan waste discharge. Double motor configuration,The scroll of rewinding can be positive and negative transfer . 8. Slitting partSlitting up and down cutter 10 sets Circle tool apron 10 setsSlitting up and down cutter gasket:1/2/5/20/30/50 each 13 pieces,10MM 12pcs
>>
