Horizontal Stainless Steel Food Powder Ribbon Mixer

US$3,950.00
1-2 Sets
US$3,780.00
3-4 Sets
US$3,250.00
5+ Sets

Basic Info.

Model NO.
PL
Application
Powder, Viscous Fluid, Granules, Powder
Application Area
Pharmaceutical, Food
Certification
CE, ISO
Condition
New
Control System
Manual or PLC
Main Material
Stainless Steel
Stirring Type
Gravity
Working
Convection Mixer
Optional Function
Heating, Drying, Liquid Spraying
Construction
Mild Steel, SUS304, SUS316L
Discharging Valve
Pneumatic Valve or Manual Valve
Weighing System
Load Cells (Optional)
Mixer Volume
as Per Order
Voltage
240V/380V/415V/440V
Layout Type
Horizontal
Mixing Drum Shape
Drum
Operating type
Cycle Operating
Warranty
12 Monthes
Mixer Type
Ribbon Mixer
Transport Package
Standard Export Package
Specification
As per order
Trademark
COBRO TECH
Origin
China
HS Code
847410
Production Capacity
300 Sets/Month

Product Description

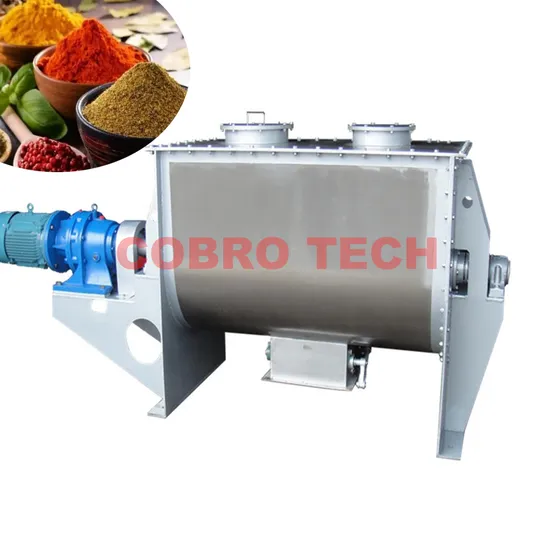

Product Description Horizontal stainless steel food powder ribbon mixer
Ribbon mixer (also named ribbon blender) is a basic industrial mixing machine. Vortex ribbon blender consists, basically, of a trough-shaped shell (usually 2 to 3 times longer than it is wide) with a semicircular bottom, fitted with a horizontal longitudinal shaft on which are mounted arms supporting a combination of ribbon blades, paddles or helical screws set at approx. 5mm clearance to the semicircular mixer body so that no layer of material remains on the bottom of the ribbon mixer at discharging materials.
Product Feature
Main features of ribbon mixer
1. Horizontal tank body, need small space but more capacity.
2. Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
3. Gear box drive the auger shaft, low noise and low malfunction, long using life.
4. U-Shape tank bottom, better for material discharge and cleaning.
5. Pneumatic cylinder to control the discharge exit.
6. Gas pressure spring help the top cover easy open.
