Vertical Centrifugal Sludge Mixing Dredge Sand Tailing Industrial Trash Discharge Mud Gravel Mines Slurry Pump

Product Description

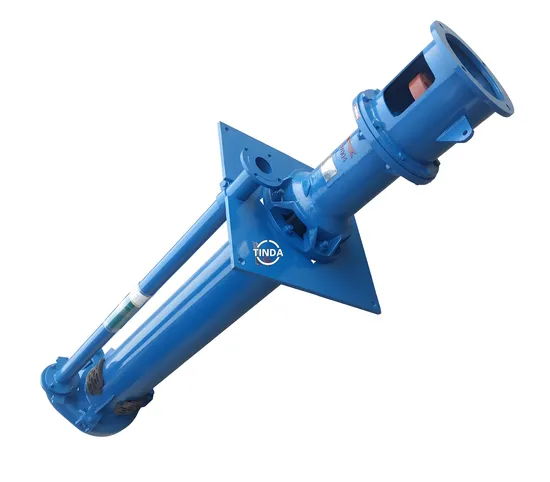

ZJL Vertical Slurry PumpModel: ZJL
Power: 4-110kw
Size: 40mm to 150 mm
Max Capacity: 480 m3/h
Max Head: 49.3m
1.Cylindrical structure of bearing assembly: convenient to adjust the space between impeller and front liner and can be removed completely;
2. Interchangeable anti-abrasive wet parts made of high-chrome alloys;
3. The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
ZJL series vertical slurry pump is a single-stage, single-suction, vertical centrifugal slurry pump. This series of pumps adopts the international advanced solid-liquid two-phase flow theory and is designed according to the principle of minimum loss. The geometric shape of its flow-passing parts conforms to the flow state of the medium, thereby reducing the wear of the flow-passing parts, improving hydraulic efficiency, and reducing operating noise and vibration. The wetted parts are made of high-hard alloy cast iron, which has high wear resistance, corrosion resistance and impact resistance, so as to improve the service life.
Better materials plus precise processing, everything is for higher quality!
Main material:
Cr27,Cr28, Rubber liner,etc
Material advantage:
Imported natural rubber raw materials
High chromium alloy, more wear-resistant!
We have foundry workshop, processing workshop and assembly workshop. All the costs you pay will be invested in better metal materials. The materials are not falsely labeled and the quality is better, which can really save you money. Real factory! Quality system certification!
Main Parts:
Support plate, Impeller, Pump body, Rear guard plate, Filter screen, etc.
Advantage:
1. No need for any shaft seal and shaft seal water;
2. It is suitable for mining, metallurgy, electric power, coal, chemical industry, building materials and other industries, transporting abrasive slurry containing solid particles, the maximum weight concentration of solid-liquid mixture: mortar 45%, ore slurry 60%;
3. The extended type of this series can reach a depth of about 5 meters under the armpit. Due to the mechanical seal structure, the slurry will not enter the bearing.
------ Specifications and Performance ------

Type		Capacity	Head	Power of Shaft	Eff
	Speed n	Q	H	Pa	η
	r/min	m3 /h	m	KW	%
150ZJL-A35	980	198	17.9	15.3	15.3
		332	13.2	17.5	17.5
		364	12.1	18	18
	730	147	10	6.3	6.3
		247	7.3	7.2	7,2
		271	6.7	7.4	7.4
	590	119	6.5	3.3	3.3
		200	4.8	3.8	3.8
		219	4.4	3.9	3.9
100ZLJ-A34	1 480	157	36.8	26.1	26.1
		214	32.6	29.2	29.2
		293	24.4	33.5	33.5
	970	103	15.8	7.4	7.4
		140	14	8.2	8.2
		192	10.5	9.4	9.4
80ZJL-A36	1 480	105	45.5	25	25
		144	41.4	27.9	27.9
		201	32.5	32.8	32.8
	970	69	19.5	7	7
		94	17.8	7.8	7.8
		132	14	9.3	9.3
65ZJL-A30	1470	38	34.7	8.2	8.2
		58	31.9	9.7	9.7
		98	26	13.4	13.4
	960	25	14.8	2.3	2.3
		38	13.6	2.7	2.7
		64	11.1	3.7	3.7
50ZJL- -B40	1470	31	58.3	16.5	16.5
		47	51	19.1	19.1
		65	37.9	22.1	22.1
	970	21	25.4	4,9	4.9
		31	22.2	5.5	5.5
		43	16.5	6.4	6.4
50ZJL-A35	1470	39	47.1	11.9	11.9
		64	40.9	14.8	14.8
		86	32.2	17.5	17.5
	970	26	20.5	3.4	3.4
		42	17.8	4.2	4.2
		57	14	5	5
50ZJL-A20	1 440	17.1	10.7	1.4	34.9
		24,7	9.2	1.6	38.6
		38	6	2	31.2
	910	10.8	4.3	0.4	34.9
		15.6	3.7	0.4	38.6
		24	2.4	0.5	31.2
50ZJL-A20J	2950	37	46.2	16.9	27.6
		56	38.3	17.3	33.8
		70	24.3	18	25.8
	1440	18	11	2	27.6
		28	9.1	2.1	33.8
		34	5.8	2.1	25.6
40ZJL-A35	1470	19.7	48	8.8	29.2
		39.4	41.7	11.6	38.7
		47.6	35.8	12.6	36.7
	960	12.9	20.5	2.5	29.2
		25.7	17.8	3.2	38.7
		31.1	15.3	3.5	36.7
40ZJL-B25	1440	10.1	21.5	2.3	26.1
		18.4	19	2.6	36.6
		22.9	16.8	2.8	37.6
	940	6.6	9.2	0.6	26.1
		12	8.1	0.7	36. 6
		14.9	7.2	0.8	37.6
40ZJL-A21	1440	9.5	17	1.6	27.9
		20.3	15.3	2	42.4
		25.9	14.1	2.2	44.6
	910	6	6.8	0.4	27.9
		12.8	6.1	0.5	42.4
		16.4	5.6	0.6	44.6

Note:1.For detailed selection of flow rate, head, specific gravity, and equipped power, please consult us. 2. "M" stands for alloy wear-resistant material, "RU" stands for rubber material.

Easy installation and stable operation
Application and ReferenceSeries
Tinda slurry pumps are widely used in the mining, coal washing, power plant, metallurgy, petrochemical, building material, dredging, and other industrial departments, etc. It is used in the various working sites including hydrocyclone feeding pump, magnetic separator feeding pump, underflow slurry pump (thickener underflow pump, filter separator underflow pump), flotation feeding pump, vibrating sieve feeding pump, shaking grading pressure pump, concentrate pump, tailing pump.
Typical Applications
1. Coal washing plants
2. Mining
3. Oil and gas
4. Sand and gravel plants
5. Dredging for mineral sands
6. Ash handling facilities attached to power stations Looking for other pumps? Click below
