Top Hardness Carbide Flat End Mill Ball Nose Cutter Radius Corner End Mills with HRC45/55/65 From Factory

Product Description

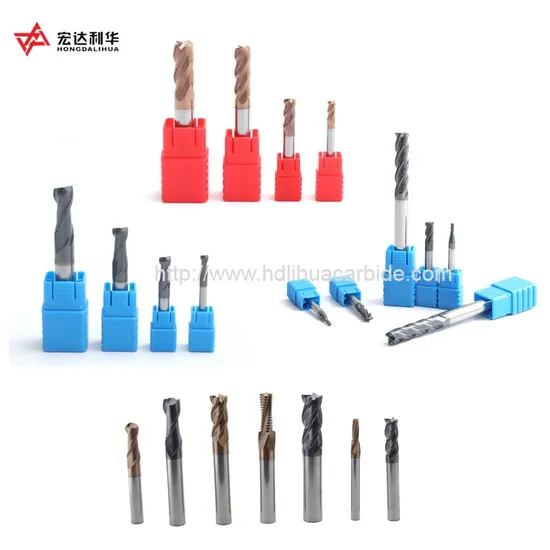

Top hardness carbide end mill ball nose cutter raduis corner end mills with HRC45/55/65
Specifications:
1.Hardness:HRC45/50/55/60/65
2.Flutes:2 flutes or 4 flutes
3.Helix Angle: 35 degree
4.Centered Cutting: Yes
5.Type: Square End Mill / Flat end mill / Metal cutting tool
6.Workpiece material: Steel, mould steel, low alloy, hardened steel, staninless steel, alloy steel
7.Coating:TiAlN
8.Tool body material:Tungsten solid carbide
9.Color: Black, yellow
Standard size or make to order for special specifications

HRC Grade	55
Sharpe of head	Flat
Flutes	4
Over Length	50 mm
D (Dia. of edge)	8.0 mm
d (dia. of shank)	8.0 mm

Unit:mm

specification	cutting	shank diamete	flute length	overall
D2.0*6*D4*75L	2.0	4	6	75
D4.0*11*D4*75L	4.0	4	11	75
D6.0*15*D6*75L	6.0	6	15	75
D8.0*20*D8*75L	8.0	8	20	75
D4.0*8*D6*100L	4.0	6	8	100
D6.0*15*D6*100L	6.0	6	15	100
D8.0*20*D8*100L	8.0	8	20	100
D10.0*25*D10*100L	10.0	10	25	100
D12.0*30*D12*100L	12.0	12	30	100
D16.0*40*D16*100L	16.0	16	40	150

Description of solid carbide end mills ,CNC end mill ,hardness end mill

Flutes No.	2/3/4 Flutes
Material	HSS,Carbide etc.
Coating	AlTiN,NACO BLUE/NACO BLACK/TiN etc.
Helix Angle	35°,45°
Hardness	HRC45/55/58/65
Size	Overal Length:50-150mm
Customized	Accept
Smooth Finish	Highly Polished
Feature	Excellent chip evacuation
Measurement	Metric

WEIX45HRC Aluminum Square series - 2F/4F
Material:© WC=0.8(UM)Co=10 HRA=92.2 HV=1620 Rupture=4000(kg.N/mm²)
Mode	FD Flute Dia	SD Shank Dia	FL Flute Length	TL Total Length
WEIX601	3	3	8	50L
WEIX602	1	4	3	50L
WEIX603	1.5	4	4	50L
WEIX604	3	4	5	50L
WEIX605	2.5	4	6	50L
WEIX606	3.5	4	10	50L
WEIX607	4	4	11	50L
WEIX608	5	5	13	50L
WEIX609	1	6	3	50L
WEIX610	1.5	6	4	50L
WEIX611	2	6	5	50L
WEIX612	2.5	6	6	50L
WEIX613	3	6	8	50L
WEIX614	3.5	6	10	50L
WEIX615	4	6	11	50L
WEIX616	5	6	13	50L
WEIX617	6	6	15	50L
WEIX618	7	8	17	60L
WEIX619	8	8	20	60L
WEIX620	10	10	25	75L
WEIX621	12	12	30	75L
WEIX622	14	14	35	100L
WEIX623	16	16	40	100L
WEIX624	18	18	40	100L
WEIX625	20	20	40	100L
Lengthening
WEIX626	3	3	15	75L
WEIX627	4	4	20	75L
WEIX628	5	5	25	75L
WEIX629	6	6	25	75L
WEIX630	7	8	25	75L
WEIX631	8	8	30	75L
WEIX632	3	3	15	100L
WEIX633	4	4	25	100L
WEIX634	5	5	30	100L
WEIX635	6	6	30	100L
WEIX636	8	8	35	100L
WEIX637	10	10	40	100L
WEIX638	12	12	45	100L
WEIX639	8	8	40	150L
WEIX640	10	10	50	150L
WEIX641	12	12	50	150L
WEIX642	14	14	70	150L
WEIX643	16	16	70	150L
WEIX644	20	20	80	150L

Super raw material

HRC45	HRC55	HRC60	HRC65
YG10X	YG10.2 &WF25(Taiwan)	K44 & K40 (German)	H10F (Sweden)
Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2	Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2	Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2	Grain Size:0.5um Co:10 % Flexural strength:4300N/mm2

Super coating

Item	AlTiN	TiAIN	TiSiN	NACO
Hardness(HV)	3200	2800	3600	42(GPA)
Thickness(UM)	2.5-3	2.5-3	3	3
Oxidation Temp(°)	900	800	1000	1200
Friction Coeffient	0.3	0.3	0.45	0.4
Color	Black	Violet	Copper	Blue

Company Informations
About Lihua Cemented Carbide
Established in 1990, specialized in production carbide products more than 20 years and located in zhuzhou city which is the hometown of tungsten carbide in China .
Our products sold well to worldwide, has been build a long term relationship with our customers from Italy, Portugal, German, Turkey, USA, Mexico, India, Australia, South Africa etc .

Main Products
Our Main products include : Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Cusomized cutter:woodworking tool, V-cutter, textile cutter, shoes cutter ects. Any kinds of customized carbide products .
Monthly Capacity of 15Ton
We have sophisticated equipments, such as Sintering Furnace, Automatic suppress Machine, Manual Hydraulic Suppress Machine, Ball Mill Machine, Drying Machine, Mixing Machine ect, Our production capacity up to 15 Ton per month. Customized is welcome, customized sample can be ready in 3-5 days and 1 day can deliver for stocks.
Strictly QC
We have a professional QC team follow to the System of ISO9001:2008, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Our Exhibitions & Qualifications
Contact:
Foreign Sales Manager : Coco Su
Factory Add: Building B-11,E-commerce Industrial Park ,Xinma South Road ,Tianyuan Zone ,Zhuzhou City ,Hunan Provice ,China 412000

---
