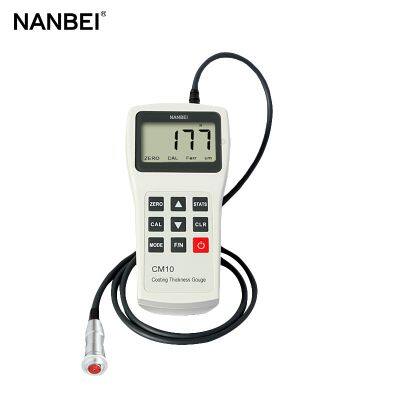

CM10FN galvanized coating thickness gauge
Feature and Description
Magnetic induction principle (Fe): measuring steel, iron and other ferromagnetic metal substrate on the non-magnetic
coating thickness, such as paint layer, all kinds of anti-corrosion coating, paint, powder coating, plastic, rubber,
synthetic materials, Chromium, zinc, lead, aluminum, tin, cadmium and so on.
Eddy current principle (NFe): measurement of copper, aluminum, stainless steel and other non-ferromagnetic nature
of all non-conductive layer thickness, such as paint layer, all kinds of anti-corrosion coating, paint, powder coating,
plastic, rubber, synthetic materials, , Phosphating film and so on.
Standard Configuration
Standard configuration
| Option
|
CM10 Coating Thickness Gauge
| Calibration film
|
Calibration film
| Aluminum plate zero plate
|
Iron-based / aluminum-based zero plate
| Iron-based zero plate
|
Operation Manual
|
|
Two AA batteries
|
|
Certificate, packing list
|
|
Instrument box
|
|
Discs, data lines
|
|
Technical data
Model
| CM10FN
| working principle
| Magnetic induction
|
Measuring range(um)
| 0-10000
| Low resolution
| 1
|
Test Conditions
| Minimum radius of curvature(mm)
| 10
|
| The smallest area of the diameter(mm)
| 40
|
| Matrix critical thickness(mm)
| 2
|
Indication error(um)
| ±(2%H+10)
|
display
| High contrast segment code LCD screen (LED backlight)
|
Statistical function
| The number of measurements, the maximum, the minimum, the average, the standard deviation
|
Calibration method
| Zero point, one point, two points calibration
|
Operating temperature
| -10℃ to +50℃
|
Automatic shut-down
| 3 minutes after no operation automatically shut down
|
power supply
| Two 1.5V AA batteries, when the battery power is low, there is a low voltage prompt
|
weight
| Containing battery 200g
|
size
| 149mmX73mmX32mm(HxWxD)
|
Model comparison
Model:CM10F
Application:
CM10F adopt magnetic measuring method to measure the thickness of non-magnetic coatings on magnetic metal
substrates.Widely used in electronics, power plants, petrochemical industry.,aviation, architecture,etc
Specification
Measuring Principle:Magnetic Method .
Measuring Principle (um) :P1(0~3000)
Low Range Sensitivity(um) :0.1
Tolerance:1-Point Calibration(um) :±(2%H+2)
2-Point Calibration(um) :±((1~3)%H+1)
Testing Condition:Min. Curvature Radius(mm):1.5
Min. Measuring Surface(mm): 7
Min. Substrate Thickness(mm): 0.5
Display:High Contrast Segment Liquid(LED Backlight)
Statistics:N,MAX,MIN,MEAN and STD.DEV
Calibration:One-Point Calibration and Two-Point Calibration
Working Temperature:-10℃~+50℃,-20℃ in special requirement.
Auto Power-off:Auto off after 3 minutes of inactivity.
Power:Two 1.5V AA batteries,low -voltage indication function.
Weight:200g including batteries
Size:149mm×73mm×32mm (H×W×D)
Model:CM10N
Application:
Using Eddy Current Measuring Method to measure the thickness of non-conductive coatings on non-magnetic
metal substrates. The Max. measuring range to 2000μm
Parameters:
Measuring Principle:Eddy Current Method
Measuring Range (um) :0~2000
Low Range Sensitivity (um) : 0.1
Tolerance:(um) ±(2%H+2)
Testing Condition:(mm): 3
Min. Measuring Suface(mm):5
min.Substrate Thickness(mm): 0.3
Display:Hight contrast Segment Liquid(LED backlight)
Statitics:N,MAX,MIN,MEAN,STD.DEV
Calibration:1-point Calibration,2-point Calibration
Working Temperature:-10℃~+50℃,-20℃ in special requirement
Auto Power-off:Auto off after 3 minutes of inactivity
Power:2 1.5V AA batteries,low-voltage indication function
Weight:200g including batteries
Size:149mm×73mm×32mm (H×W×D)
Model:CM10FH
Application:
Using the Magnetic Method (Fe) for Measuring the thickness of non- magnetic coatings on steel, iron and other
ferromagnetic metal substrates. Measuring Range is 0-10000μm.
Parameters:
Measuring Principle:Magnetic Method
Measuring Range (um) :(0~10000)
Low Range Sensitivity (um) :10
Tolerance::±(2%H+10)
Testing Condition:Min. Curvature Radius(mm):10
Min. Measuring Surface(mm): 40
Min. Suibstrate Thickness(mm): 2
Display:Hight Contrast Segment Liquid Crystal Display(LED Backlight)
Statistics:N,MAX,MIN,MEAN,STD.DEV
Calibration:One-point Calibration,Two-point Calibration
Working Temperature:-10℃~+50℃,-20℃ in special requirement
Auto Power-off:3Auto off after 3 minutes of inactivity
Power:Two 1.5V AA batteries,low-voltage indication function
Weight:200g including batteries
Size:149mm×73mm×32mm (H×W×D)
Model:CM10FN
Application:
This compact and handy pocket gauge has been designed for non-destructive, fast and precise coating thickness
measurement. Fit for both experiment and project site. According to the probe type, the gauge work either on the
magnetic induction principle or on the eddy currents principle
Parameters:
Working principle:P1 Magnetic Method ,P2 Eddy Current Method,
Measuring Range(um) :P1(0~3000), P2(0~2000), )
Low range sensitivity (um) :0.1( P1), 0.1(P2),
Tolerance:
One-point Calibration(um) :±(2%H+2) P1, ±(2%H+2)P2,
Two-point Calibration(um) :±((1~3)%H+1) P1, ±((1~3)%H+1.5)P2,
Testing Condition:
Min.Curvature Radius(mm):1.5 ( P1), 3(P2), 10(P3), 1(P4)
Min.Measuring Surface(mm): 7( P1), 5(P2), 40(P3), 3(P4)
Min.Substrate Thickness(mm): 0.5( P1), 0.3(P2), 2(P3), 0.2(P4)
Display: High Contrast Segment Liquid Crystal Display (LED Backlight)
Statistics: N, MAX, MIN, MEAN and STD.DEV
Calibration: One-point Calibration,Two-point Calibration
Auto Power-off: Auto off after 3 minutes of inactivity;
Power: 2AA 1.5V batteries,low-voltage indication function
Weight: 200g including batteries.
Size: 149mm×73mm×32mm (H×W×D)
>>
