Dongfeng 25 Ton Arm Roll Garbage Truck with Hook Lifting System Coat Powder Painting Process

Product Description

Product Description
Dongfeng 6×4 Hook Arm Garbage Truck Garbage Truck Product Description and advantages:
Garbage truck: dump truck, garbage truck, refers to a special vehicle used exclusively for the municipal sanitation department to transport various garbage. The types are: compressed garbage trucks, swing arm garbage trucks, hook-arm garbage trucks, and bucket-type garbage trucks.
Garbage trucks mainly carry domestic garbage, and can also transport bulk materials such as ash, sand, stone and soil. They can also send ore or coal in mines or coal construction.
Garbage trucks are classified into: compact garbage trucks, dump trucks, swing arm garbage trucks, pull arm garbage trucks, hook-arm garbage trucks (vehicle detachable garbage trucks), sealed garbage trucks, and hanging buckets. Garbage truck (self-loading garbage truck). Garbage trucks are mainly used for municipal sanitation, large-scale factories and mines, for transporting various kinds of garbage, suitable for transporting residential garbage, and can compress and crush the loaded garbage to increase its density and volume, and greatly increase it. The efficiency of garbage collection and transportation. The new garbage truck has the characteristics of reliable quality, low failure rate, convenient maintenance and low operating cost.

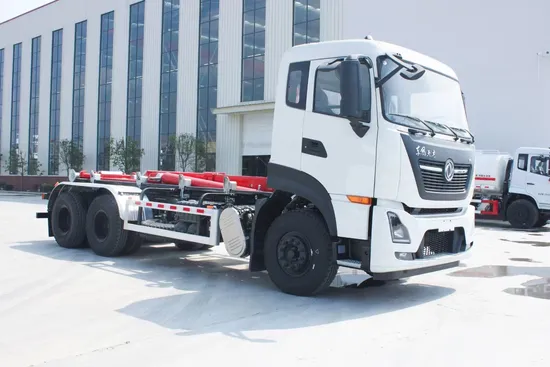

Hook arm garbage truck vehicle introduction
The car can be unloaded garbage truck, also known as hook arm garbage truck, pull arm garbage truck. The car is widely used in urban street school garbage disposal, can be equipped with multiple buckets, each garbage point placed multiple, with self-unloading function, hydraulic operation, easy to dump. On weekdays, the car garbage can be placed in each garbage collection station, when the garbage collection is full, the car can go directly to the garbage station, through the control of the hydraulic system, the hook arm installed on the back seat of the garbage truck can be lowered, hanging the connection point of the front end of the garbage station, the garbage can be pulled to the back seat of the car, at this time the vehicle can start, the garbage can be transported to the garbage disposal station. Perform a dump. The main advantage of the car is that a car can be equipped with multiple buckets, a car can maintain the operation of several garbage collection stations, high efficiency, and the box is sealed design, will not cause secondary pollution.
The company has many years of experience in the design and manufacturing of the arm hook top, continuous improvement, attention to every detail. All products are designed and manufactured in full accordance with international product standards. In order to ensure the welding quality and reliability of steel components, the production and welding process is strictly controlled to make the products safer and more reliable.
T series telescopic arm hook products have the characteristics of high reliability, high strength, high economy and high adaptability. Among the many hook products, the T Series retractable hook is the champion of real payloads on the market due to its high strength and high adaptability.
User-oriented design, reliable and easy to operate, robust and easy to service. The product is fully lightweight design, low weight, to achieve the maximum effective load capacity, and bring environmental protection and energy saving benefits. Using finite element computer design, it has perfect geometric structure and mechanical properties. The design fully considers the safety, reliability and ease of operation, the support and locking of the body, the locking of the hook, the order of the operation and safety considerations, etc., have a reasonable design, and the optional unit can be used in special cases to achieve higher requirements. Main control valve, hydraulic pump, hydraulic cylinder and valve parts, high strength material parts are unified according to international standards.
Product Parameters
Product parameters table
Main technical parameters of pulling arm system

serial number	Title	parameter
1	Maximum pulling capacity	25T
2	system pressure	30MPa
3	Dead weight of equipment	3000Kg
4	control voltage	24V
5	Extension of hook arm	900-1200mm
6	Oil pump displacement	50ml/r
7	Hydraulic tank volume	40L
8	Hook time	45s
9	Hook height	1530mm
10	Distance from hook center to rear roller	4123-4423mm
11	Width of guide	1060mm

Main technical parameters of hook arm garbage truck
Overall dimensions:	8900×250×3300(mm)	Container size:	××(mm)
Total mass:	25000(Kg)	Approach/departure Angle:	21/23(°)
Rated quality:	14605,14670,Kg)	Front suspension rear suspension:	1235/1350,1235/1150(mm)
Quality of service:	9500;10500(Kg)	Maximum speed:	89(km/h)
Chassis parameter
Fuel type:	Diesel	Chassis model:	Dongfeng ;china
Number of shafts:	2	front gauge:	1876,1896,1920,1950,1914,1934,1980,2000,1815,1860(mm)
Wheelbase:	4350+1350(mm)	track rear:	1820,1860,1800,1840(mm)
Number of cab passengers:	3	Number of spring pieces:	7/9+6,8/10+8,8/9+6,11/10+8,3/10+8
Number of tires:	6	axle load:	4800/9200
tyre size	12.00R20 18PR,275/80R22.5 18PR

Detailed Photos
Can be matched with various garbage bins (life garbage bins, construction garbage bins)
Work flow chart
.
Company workshop and product display
Other products
Packaging & Shipping
Why Choose Us
--HOW LONG WILL OUR PRICE BE VALID?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remains stable through the year, We only adjust our price based on two situations:
** The rate of USD: RMB varies significantly according to the international currency exchange rates.
** Manufacturers/Factories adjusted the trucks and machinery price, becaue of the increasing labor cost, and raw material cost.
--WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
We can ship trucks, trailers and machinery by various transportation tools.
**For 90% of our shipment would go by sea, to all main continents such as South America, Middle East, Africa, Oceania and Europe etc. either by container or RoRo /Bulk shipment.
**For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan etc., We can ship trucks trailers, machinery by Road or Railway.
**For light spare parts in urgent demand, we can ship it by international courier service. such as DHL, UPS, TNT, or Fedex. 1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit → production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.

---
