Small Scale Sunflower Peanut Soybean Corn Oil Press

Product Description

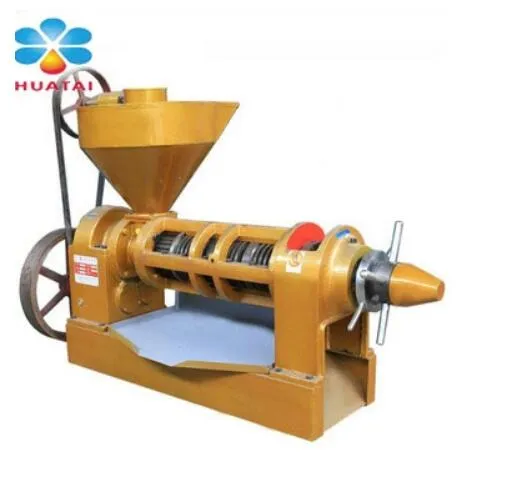

Small scale Sunflower Peanut Soybean Corn Oil Press
Spiral Oil press Description
Suitable material:peanut, soybean, rapeseed, sunflower seed,cotton seed and other oil seeds material.
Our products are edible oil press machine, edible oil extraction machine with solvent and edible oil refining machine It's applicable to peanut oil press, ssoybean oil press, palm kernel oil press, sesame oil press, rice bran oil press, rapeseed oil press, cottonseed oil press, sesame oil press, copra oil press, castor oil press,sunflower oil press,pumkin seed oil press,corn germ oil press,bancoul oil press, walnut oil press, mustard seed oil press, avocado kernel oil press, shea nut oil press, pine nut oil press, grape seed oil press,almond oil press,tea seed oil press, pepper seed oil press,etc.We can supply oil press machine for 1 ton to 2000tons per day.
By the customers requirement we can provide cooking oil press machine, cooking oil making machine, cooking oil extractor or cooking oil refinery machine. Any part of this edible oil producing line can be supplied by us.

Model	Capacity	Residual Oil	Power	Dimension	Weight
ZX18	7-10t/d	5%-7%	18.5kw	2900×1850×3240 mm	5500kg
ZX24A	68-80t/d	12-18%	30+5.5+3.0 kw	2900×1850×3640 mm	5500 kg
Z24A	15-20t/d	7%-8%	30+5.5+3.0 kw	2900×1850×3640 mm	5500 kg
ZY24	40-50t/d	14-18%	30kw	2900×1850×3640 mm	5500kg
ZY32	220-260t/d	16%-20%	110+11+5.5 kw	4100×2270×3850 mm	11000 kg
ZY43	400-500t/d	18%-20%	160+7.5+2.2+1.1 kw	5560×940×3423 mm	15000kg

Advantage:
(1) Simple design, low consumption and light weight, easy to handle and move. (2) Easy for operating, low labor intensity and high economical profit. Features:
1,simple operation, high yield rate, low consumption, motor can be customized. 2,Wide range of capacity for more choices of our customer. 3,Wide application of oil press for more cost-effective solution.
Application
It is suitable for cold pressing and hot pressing of anything containing oil,such as olives, sesame , flax seed, peanut kernel, Jasmine Oil,Pumpkin seeds, Walnut Kernel,Chili oil, rape seeds, etc. We believe this machinery can spread out quickly in overseas.It saves more space than traditional oil press and can be operated easily and conveniently. What's more, it is multi-functional.You deserve it.
Oil press machine details:
Steel casting, squeezing bar and worm quenching process, wear-resistance
The thickness of pressing cake is adjustable, convenient maintenance,
Semi-open type reducer,stable running, cake outlet with cake crushing device, squeezing shaft can be input cooling circulating water,improve cake quality, the whole oil press is sealed, energy-saving and beautiful.


Realated craft flow and equipments is as following:

1. Material Pre-treatment

In this section, the impurities in the soybean material will be removed and the soybean hulls will be separated. The bean embryo will be broken into small pieces and then processed into a puffed state. The purpose for this arrangement is to create a good production enviroment and minimize the total fat loss, increase oil yield and output and improve the quality of oil and cake & meal.
2. Oil Extraction

After sealed screw conveyor put the puffed soybean into exactor, the oil in extruded soybean will be dissolved by solvent, finally get crude oil. Compared with the pressing method, the residual rate of leaching is low (<1%) and offer a better quality meal. At the same time, this solution has the following features:
Adopting negative pressure evaporation can ensure excellent oil quality; Extraction system is highly adaptable, and can adapt to different raw material ; All equipments are provided with exhaust gas absorption systems with excellent absorption effect; Full energy-saving design utilizes heat energy for many times and saves steam consumption.
3. Oil Refinery

Crude oil contains a large number of other ingredients that require further refining. In this section, continuous alkali refining shortens contact tome between oil and lye,which reduces oil saponification state,lowers refining consumption,and improves efficiency;negative pressure state avoids oxygen in the air from contacting with hot oil,thereby ensuring oil product quality ,inhibiting with hot oil,there by ensuring oil product quality,inhibiting acid value to rise again,and lowering peroxide value; physical refining section adopts new type continuous deacidiffication and deodorization craft, the actual production proves its most obvious advantages as following: strong deacidiffication ability ,excellent hot bleaching effect,high refining rate ,good oil quality etc.
Why Choose Huatai Mchinery:

1. Strenth Factory, speciallized in grains & oils for over 60 years
One of the most largest Cooking oils factory in China;
More than 100,000 square meters;
Over 580 professional employees;
8 Large-scale workshop, 120 production equipments;
Over 60 years experience in Grain & Oil industry;

2. Research and Development Center
27 national patents technical, have many published books;
High-tech enterprise Certificate of Henan Province;
Complete equipment major production enterprises in China;
Provide specific solutions to meet different requirements;

3. Strict quality control system
Stricted quality control, have passed ISO 9001, CE, CNAS;
With high level automation and higher productivity;
Have Special Equipment Manufacturing License;
Have many advanced quality testing auxiliary equipment;
Long service life and lower maintenance cost;

4. Dozens of certificates and honors
Won Gold Award of China Invention Exposition;
Excellent member of China Grain & Oil Association;
Won the Provincial trustworthy unit for many years;
China Top 10 Food and Oil Machinery Brand;
5. Rich experience of large overseas projects
Hundreds of successful overseas projects;
Rich experience in government bidding projects;
Products are exported to all over the world;
Large project experience, can undertake 3,000t/d projects;

6. Thoughtful & Considerate after-sale Service
Overseas Installation Services & Staff Training;
On-site technical service;
Large warehouse, stable supply of spare parts;
Stable and standardized after-sales service team;

FAQ Q:Are you a trading company or a factory.
A: We are not just a trading company, we are a real factory with export license, and have speciallized in Grain and Oils machine for over 60 years.
Q:What's your main Product series?
A: We produce Oilseeds Pretreatment, Oil Extraction, Oil Refinery Equipment, Milling Machine and other related Grain and oil processing equipment.
Q:What kind of oilseeds can your equipments process?
A: Based on our strength R&D support, we can handle all kinds of the oilseeds, Palm fruit, Coconut, Soybean, Rapeseed, Cotton Seed, Sunflower seed, Peanut, Corn germ, Rice Bran, Sesame, Walnut etc.
Q:Do you have the small oil press machine?
A: Yes, we have small oil press machine, AKA home use oil press machine, single oil extraction machine.
Q:Can you provide Turnkey Service Oversea?
A: Yes, we have rich experience in large EPC turnkey service, and we can provide EPC Turnkey Service Overseas.
Q: Who are you selling to? Where are your main market?
A: We have already sold our products in over 1 hundred contries all over the world. Our main markets include India, Malaysia, Thailand, Vietnam, Indonesia, German, Brazil, German, Poland, Iran, India, Dubai, Dominican, Cuba, South Africa etc.
Q: How about the Delivery time, payment terms?
A: Accordding to the requirement of different customers, we will provide the most suitable solution for you.
Q: Where your factorY location? How could I come to visit your factory?
A: Our Overseas Business Dept. locate in Zhengzhou City, so you can fly to Xinzheng International Airport, then we'll pick you up.

Our Services
1. Supply set of equipment and accessories on time.
2. Ensure the installation and debugging are succeed by one time.
3. Supply good material and price machine to customer.
4. Develop new product and production technology and supply them to customer
5. We will direct the installation and operation of the equipment, and train operators for customer
6. Engineers available to service machinery overseas
7. 1 year warranty period for machine, during this period we will amend the machine free charge if
it is equipment quality problem. But if the machine broken by operation reason, the customer need to take the accessories charge. We will supply solution within 4 hours, or our engineer comes to solve it within 3 working days.

---
