Cellulose Mixer 4000L with Double Motors

Product Description

--- Factory Direct Sale
--- good quality + competitive prices + best services = best shopping experiences!
Introduction:
Welcome to Shindah, your professional and reliable supplier of Kneading Machinery since 2003.

sigma mixer/Z blades mixer/kneading machine/sigma kneader with double Z/Sigma Blades, is to be used for mixing and kneading of low-to high-viscosity products in many industries such as CMC/Cellulose, plasticize/silly putty, Batteries, BMC/DMC, Chewing gum, candy/sugar paste,Hot melt adhesive, silicon compound, Electrode paste, carbon, pencil leads, soap, pigments, inks, plastic ect.

Machine structure:
Including kneading/mixing system, machine base, hydraulic system, discharge system, transmission system, electric control system, heating system (optional), cooling system (optional), vacuum system (optional)

---- Discharge: Tilting discharging
Screw extruding discharging
Ball valve/bottom plate ( manual, electrical, pneumatic)
---- Heating: electric heating, hot water heating, hot oil heating, steam heating
--- Cooling: Z blades water cooling, mixing chamber with jacket for cooling purpose.
---- Vacuum system: water-ring vacuum pump and buffer tank.
4000L Cellulose Mixer Parameters:

NH-4000/ 4000 L SIGMA MIXER
Total capacity	4000 Liters, working capacity 2400 Liters
Material	Contacting part made by SS316L, Other part carbon steel
Steel thickness	Cylinder 14mm, SS316L
Side plate	Carbon steel Q235 30mm,clad plate 6mm SS316L
Jacket	Carbon steel Q235 12mm, jackets at 4 sides.
Lid	SS316L, 8mm, curved plate, with silicon rubber sealing strip Opening as per customer's requirement
Sigma blades	Z shape, casting iron integral casting, surface covered with 6mm SS316L.
Quick blade motor	4-45kw, horizontal type, 380V/60Hz/3pahse(explosive proof type)
Reducer	ZLY-250 Helical gear reducer (Guomao brand)
Speed	37 rpm
Slow blade motor	4- 45 kw, horizontal type, 380V/60Hz/3pahse(explosive proof type)
Reducer	ZLY-250 Helical gear reducer (Guomao brand)
Speed	21 rpm
Heating	By hot oil circulation in jacket
Cooling	By cooling water circulation in jacket
Vacuum degree	(-)0.09mpa
Temperature	max 200C
Discharging method	By bottom valve, 2*DN300
Lid Opening	lid fixed on mixer by bolts
Lid design	As per customer's requirement, with 2 liquid sprayer pipes
Gap with cylinder	4±1mm
Bearing	double row self-aligning ball bearing, SKF brand
Center distance	800mm
Bottom base	National standard H steel 180#
Surface treatment	Stainless steel part polish, other part painted
Electric control panel	as per requirement.
Drive way	Motor and reducer Triangle belt soft connection
Drive type	Reducer and gear by coupling, coupling and z blades by gear
Sealing	Packing seal, good sealing effect.
Vacuum	With water-ring vacuum pump 15kw, and carbon steel buffer tank 800L, with vacuum gauge, and connecting pipe.

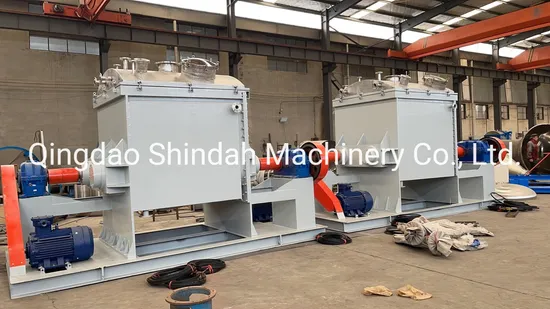

4000L Cellulose Mixer pictures:
Below are our different types Sigma Mixers:
Welcome your inquiry!
Contact info:
Ms Lynn or Ms Chris

---
