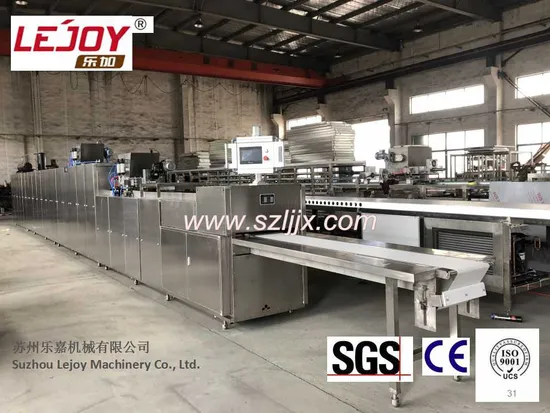

Chocolate Depositing Moulding Line Two Colours and Center Filling Machine

Product Description

For quantitative pouring chocolate special equipment, it can produce single color, two-tone color, contains filling the chocolate and the broken kernel contains filling the chocolate. The machine set of a baking mold, the second cast, the second vibration, secondary cooling, transmission, automatic ejection in one multi-casting machine.
This machine has the quantitative precision (each piston rod are used import seal, each are inlaid stainless steel piston set outside the rod), photoelectric control casting, electrical heating mode, automatic climate control, hot water circulation. It is suitable for the factory which has many varieties and large production capacity.
Main parameter:
Production ability: 10-18 moulds/minute
Mould dimension: With lug: 280× 200× 300mm
Without lug: 330× 200× 30mm
General power: 23KW (include refrigerate machine)
Weight: 4100KG
Outside dimension: 1600(include 200cm length transportation table)*100*230cm

Type	Production capacity( moulds/minute)	Power(KW)	Mould number	Mould demensions(mm)	Weight (kg)	Outside dimension(mm)
QJJ150	6-15	7.47	200	275*175*30	500	4000*520*1500
QJJ175 (single casting head)	6--15	19	280	275*175*30	3500	16000*1000*1800
QJJ175( double casting heads)	6-15	23	330	330*200*30	4100	16000*1000*1800
QJJ330-510	6-15	28	380	510*200*30	5300	18000*1200*1900
QJJ275 (3-steps depositing)	6-12	38	410	275*175*30	6500	15420*5270*2100
QJJ1000	6-12	49	580	----------	8200	26800*3500*2550

---
