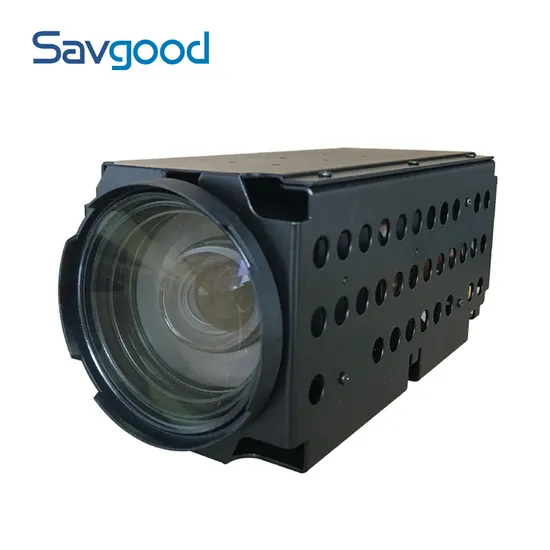

| Model | SG-ZCM8050N(-O) | |
| Sensor | Image Sensor | 1/1.8" Sony Exmor CMOS |
| Effective Pixels | Approx. 8.42 Megapixel | |
| Max. Resolution | 3840(H) x 2160(V) | |
| Lens | Focal Length | 6mm~300mm, 50x Optical Zoom |
| Aperture | F1.4~F4.5 | |
| Close Focus Distance | 1m~5m (Wide~Tale) | |
| Angle of View | 59°~1.8° | |
| Video Network | Compression | H.265/H.264/H.264H/MJPEG |
| Storage Capabilities | TF card, up to 128G | |
| Network Protocol | Onvif, GB28181, HTTP, RTSP, RTP, TCP, UDP | |
| Resolution | 50Hz: 25fps@4K/8Mp(3840×2160) 60Hz: 30fps@4K/8Mp(3840×2160) | |
| IVS | Tripwire, Cross Fence Detection, Intrusion, Abandoned Object, Fast-Moving, Parking Detection, Crowd Gathering Estimation, Missing Object, Loitering Detection. | |
| S/N Ratio | ≥55dB (AGC Off, Weight ON) | |
| Minimum Illumination | Color: 0.1Lux/F1.4, Black&White: 0.01Lux/F1.4. | |
| Exposure Compensation | ON/OFF | |
| Strong Light Suppression | ON/OFF | |
| Electronic Defog | ON/OFF | |
| Optical Defog(Optional) | Night Mode, 750nm~1100nm channel is Optical Defog | |
| Zoom Speed | Approx 7s(Optical Wide-Tele) | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/ Outdoor Auto/ Sodium lamp Auto / Sodium lamp | |
| Electronic Shutter Speed | Auto Shutter (1/3s~1/30000s) Manual Shutter (1/3s~1/30000s) | |
| Exposure | Auto/Manual | |
| 2D Noise Reduction | Support | |
| 3D Noise Reduction | Support | |
| Flip | Support | |
| External Control | RS232 | |
| Communication Interface | Compatible with the SONY VISCA Protocol | |
| Focus Mode | Auto/Manual/Semi-automatic | |
| Operating Conditions | (-30°C~+60°C/20% to 80%RH) | |
| Storage Conditions | (-40°C~+70°C/20% to 95%RH) | |
| Power Supply | DC 12V±15% (Recommend: 12V) | |
| Power Consumption | Static power: 5W, Sports power: 6W | |
| Dimensions(L*W*H) | Approx. 175mm*72mm*77mm | |
| Weight | Approx. 900g | |
