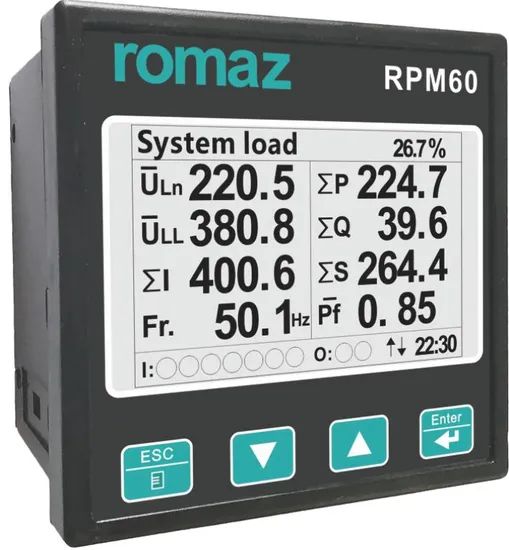

Rpm60 Power Meter Network Analyzer

Product Description

Product Description
* True RMS measurements (512 samples/cycle)
* For single-phase, two-phase, three-phase system
* Measurements:VL-L,VL-N,1n,Cos Pf,Hz,W,W,Va,Va,Var,Var,lmport Kwh,
export Kwh,lmport Kvarh,export Kvarh,V-THD,I-THD,1-63th harmonlc,system runninghours,% voltage unbalance,
%currentuhbalanoe,%system load, total frequency
* 3 voltage and 4 current input(Measure or calcu late the neutral current)
* Detects CT wiring errors
* Maximum, minimum and demand for U,I, P, Q Sin hours, days, months
* Voltage Input: 0-690Vac, Current input: 1 or 5A CT selective
* %system load and system running hours
* Real time clock with in teg rated b ackup recha rge ab le battery
* 4 quadrants energy measure and monthly energy calculation
* 2 pulse output and RS485 communicatlon: Modbus RTU
* Alarm event log
* Built in 1Mblt memory
* English, Chnese (traditlonal & smplled or Otherlanguage
* Moduel functlon optlons (only one can be selected)
- 7 digital input +2 relay output(remote or alarm)(Standard)
- 7 digltal input +2 analog output(4-20mA) for V1,V2,V3,V12,V23,V31,11,12,13 (option)
- Ethemnet (Modbus TCP), Web server+2 digltal input +2relay output(remote or alarm) (option)
- LoRa wireless (Prlvate protocol)+2 digltallnput+2 relay output (remote or alarm)(option)
- RS-485 interface (Modbus RTU)+2 digltal input+2 relayoutput (remote or alarm)(option)
- WIFl wireless +2 digltallnput +2 relay output(remote oralarm)(option)
Product Parameters

Auxiliary Supply
Operating voltage (Un)	85···265 VAC 50/60Hz 10W / 100-285VDC/24-48VDC(depend on order)
Power consumption	4VA max
Measurement input
Voltage inputs for direct connection:	Phase-neutral(L-N): max 400V RMS CAT III
Input impedance(for direct voltage inputs):	>4MΩ
CT inputs:	max 5.5A RMS
CT inputs overload capacity:	max 10A
CT inputs Self-consumption :	< 0.2VA
Accuracy
Three phase voltage:	± 0.2%
Currents:	± 0.2%
Powers:	± 0.5%
Powers factor:	± 0.5%
Frequency:	± 0.02%
Harmonics:	± 1%
Active energy:	Class 0.5S
Reactive energy:	Class 0.5S
Insulation
Insulation voltage	3kV for 1 min., 50Hz
Display
Display type	3.2inch 240x160 pix LCD
I/O
Digital inputs:	Active dry contact
Digital outputs:	2 Relay N/O 220VAC 5A
Analog outputs:	4-20mADC / max load 500Ω
Pulse output:	24-30VDC Max.50mA, Min. 50msec pulse width
Memory
Recording memory:	Built in 1Mbit memory
Communication
Ethernet port:	Auto MDIX Rj45 10/100 Base Ethernet
RS-485 port:	1 optoisolated, 4800-57600
Protocols:	HTTP, HTTPS, Modbus RTU/TCP
Environmental conditions
Opterating temperature:	-10···+55°C
Storage temperature:	-25···+75°C
Relative humidity:	95% max without condensing
Altitude:	max 2000m AMSL
Installation & use:	Internal
Mechanical characteristics
Mounting:	Panel mount 96x96mm(The panel cut-size 92*92mm)
Size:	Front(WXH)96x96mm, Rear (HxD) 90x70mm
Degree of protection:	IP40(optional IP54) on front, IP20 housing and terminals
Weight:	400g
Standard compliance
reference standard:	IEC61010-1; IEC61557-1;IEC61557-12; IEC61326-1;IEC62053-21; IEC62053-22; IEC62053-31; IEC60068-2-1; IEC60068-2-30; IEC60364-5-52; IEC61000-3-2; IEC61000-3-3; IEC61000-4-2; IEC61000-4-3; IEC61000-4-4; IEC61000-4-5; IEC61000-4-6; IEC61000-4-8; IEC61000-4-11; IEC61000-4-30
