Column Drilling Machine Z5040L Vertical Drilling Machine

US$2,000.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z5040L

Structure

Vertical Drilling Machine

Layout

Vertical

Controlling Mode

Artificial

Number of Shaft

Hole Diameter

<50mm

Automatic Grade

Automatic

Precision

High Precision

Certification

CE, RoHS, ISO 9001

Condition

New

Spindle Taper

Mt4

Max. Spindle Travel

180mm

Table Size

560*520mm

Transport Package

Wood Case

Specification

CE ISO9001 RoHS

Trademark

L&T

Origin

Tengzhou China

HS Code

8459290000

Production Capacity

200 PCS/Month

Product Description

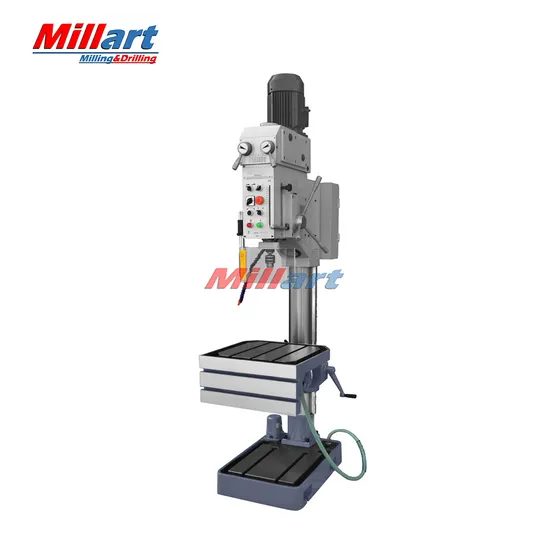

Column Drilling Machine Z5040L Vertical Drilling Machine
Features:
2 speed strong power motor, 18 steps speed which can improve the machining accuracy and producing efficiency.
2 steps power feed 0.1-0.2mm/rev
Drilling, tapping, boring, reaming;
Automatic tools ejectors
Strong column, table can rotary and tilting, Gear drive, lower noise;
Technical parameter:

Model	Z5040L
Maximum drilling diameter	40mm
Max Spindle travel	180mm
Distance from spindle to column	350mm
Max distance from spindle to table	780mm
Max distance from spindle to base	1320mm
Spindle taper	MT4
Spindle speed range	50-1450(r/min)
Width of T slot	18mm
Distance of T slot of base	150mm
Work table size	560x520mm
Work table side size	560x250mm
Base table size	730x500mm
Range of feed	0.1,0.2
Main motor power	0.85/1.5kw
Cooling pump motor	60W
GW / NW (kg)	545Kg/465Kg
Packing size (cm)	113x70x228cm

Standard accessories:
Work light.
Coolant system
Drill chuck and arbor
Fender device
Tool box & tools 1 set
Auto feed
Optional accessories:
Machine vice
