Heavy Duty CNC Graphite Milling Machine

Product Description

Company Profile
Product Description
Nantong AJ Industry Limited offers the VMC series, including VMC850(H), VMC1060(H), and VMC1160, versatile 3/4/5-axis CNC milling machines for precise metal cutting and drilling operations.
Product Description
Vmc550 650 850 1160 1270 1370 1160 1890 OEM ODM High Quality Vmc3 axis 4 Axis 5 Axis Universal CNC Vertical Horizontal CNC Machining Center Machining BT40 BT50 4 5 axis cnc milling machine manufacturer vertical machining center pirce AJMTG Most Popular 3 axis VMC CNC Vertical Machining Center

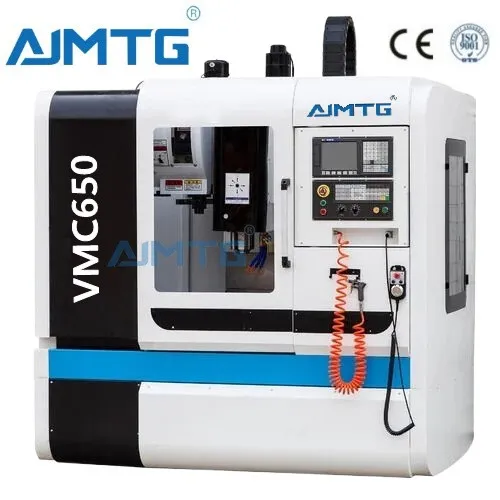

Nantong AJ Industry Limited presents the AJMTG CNC Vertical Machining Center, a high-quality and economic solution for heavy-duty machining tasks. With a powerful 5.5 kW motor and a BT40 spindle taper, this machine can handle workpieces up to 500kgs with precision and efficiency.
Precision construction with automatic lubrication
Special bearing ball screw for location accuracy
Reinforced structure for shockproof performance
High-speed spindle unit and AC servo motor for versatile operations
Servo drive shafts for all three axes
Spindle with rigid tapping function for enhanced accuracy
Option for Taiwan spindle, ball screw, and bearing
X/Y/Z linear guide way available
Up to 10000rpm spindle speed
Portable hand wheel for convenience
Customizable options for color, voltage, and logo
Top-quality manufacturing with excellent after-sales service
For more details on our VMC machines, please contact us directly. Experience the reliability and performance of Nantong AJ Industry Limited's CNC Vertical Machining Center.
Product Parameters

Machining range	X axis travel	800mm
	Y axis travel	500mm
	Z axis travel	500mm
	Spindle nose to worktable	150-650mm
	Spindle to column guide	550mm
Worktable	Worktable size	1000x500mm
	T slot	18X5X90mm
	Weight load	500kgs
Spindle specification	Spindle	8000rpm belt drive Japan make
	Spindle motor	7.5kw
	Spindle taper	BT40(Ø140)
Feed system	G00 fast feed	48/48/36m/min
	G01 cutting feed	1-10000mm/min
	Servo motor	2*2*3kw
Tool system	Capacity	24 tools arm type Taiwan make
Main parts		Make
Ball screw		Taiwan C3 grade diameter 40mm, pitch 12/16mm
Linear guide		Taiwan HIWIN or Germany 35mm pin roller type
Spindle		Taiwan diameter 140mm , 8000 rpm
Tool magazine		Taiwan BT40-24 tools arm type
Bearing for 3 axis		Germany or Japan Nachi, Screw Angle Support Bearing 30X62

Our Advantages
Export Certificate for Heavy Duty CNC Graphite Milling Machine by Nantong AJ Industry Limited.

---
