Product Description
Product Description

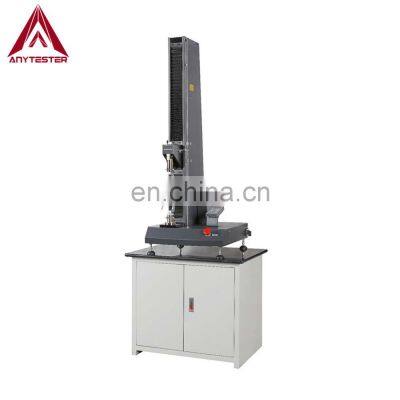

Product DescriptionAT101 Series Universal Testing Machine addresses the needs of standardized and routine testing, providing the user high quality at the most affordable price. The single column testing systems are suited for tension and/or compression applications where tests are less than 5 KN and lab space is limited. They are typically used for quality control and production testing.AT101 Series Universal Testing Machine is suitable for tensile, compression, bending, shearing, peeling, tearing and other mechanics performance tests of metals, building components, large fasteners, composites, wood products, plastics, rubber, textile, geosynthetics, non-metallic and composite materials. It completely conforms to GB, ISO, ASTM, JIS, DIN and other test standards. SpecificationFrame typeW*D*HA*B*C (mm)Crosshead TravelH(mm)Front Opening SpaceL(mm)Adapter(mm)Pin(mm)Standard490*530*15901000100Ф20Ф10ModelAT101AAT101BAT101CAT101DAT101ECapacity50N100N200N500N1kNTypeSingle columnCalibration standardISO 7500, Class 1 / Class 0.5Force range0.2% ~ 100%FS / 0.4 ~ 100%FSForce accuracy±1.0% / ±0.5% of readingForce resolution1/500000FSPosition accuracy0.50% of readingPosition resolution0.042μmCrosshead speed0.01 ~ 750mm/minCrosshead speed accuracy±1.0% / ±0.5% of set speedCrosshead travel(without grip)1000mmDimension530*490*1590mmPower requirementsAC 1Phase, 110/220V±10%, 50/60HzWeight90KgDetails & Features★Imported robust linear motion guide increases lateral stiffness and ensure linear crosshead travel. This results in accurate crosshead alignment thus reducing variability in measurement data and producing better overall accuracy★Non-clutched drives, rated for full speed at maximum force★Compact design saves lab space★Imported servo motor with precise planet-gear speed reducer provides higher driving efficiency, low noise and free of maintenance. No need replace lubricates which has longer working lifeHigh Quality at affordable price1)Pre-loaded ball screws and heavy duty bearings assure long life with zero backlash as well as linear low force and through zero performance. The result is accurate and repeatable measurements that truly represent the specimen characteristics rather than load frame deficiencies2)Fully-protected lead screw covers provide longer life and greater operator protection3)Easy-to-clean aluminum column covers with chamfered corners to facilitate access to the test area. T-slots are built in for simple, convenient attachment and positioning of testing accessories4)Photoelectrical encoder built in servo motor system is for position measurement of crosshead5)Built-in bidirectional load cell is assembled in the middle 6)crosshead to prevent any collisions and simple to perform compression or tension tests7)Dual action over-travel limits on all frames provide the highest level of safety and meet all international standards1)crosshead to prevent any collisions and simple to perform compression or tension tests2)Dual action over-travel limits on all frames provide the highest level of safety and meet all international standards3)High-speed, low vibration, world-class, maintenance-free, imported AC servo motor and servo controller1)Remote control keypad facilitates test operation2)Full one-year warranty on parts and labor3)Free software upgradingFull complement of test accessoriesExtensive range of accessories to meet test requirements in almost any application or industry: plastics, metals, biomedical, composites, elastomers, components, automotive, aerospace, textiles, and more.1)Tension grip2)Peel/tear fixture3)Compression fixture4)Flexure fixture5)Film COF test fixture6)Exchangeable load cells: 10N~2kN7)Long travel extensometer8)Clip-on extensometerOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
>>
