3.6V 19000mAh High Capacity Primary Lithium Battery Er34615h for Electric Meters

Product Description

Product Description
3.6V 19000mAh High Capacity primary Lithium Battery Er34615h for Electric Meters
Product features : High cell voltage : open-circuit voltage of 3.67V and an operating voltage of 3.60V
Wide operating temperature range : from -55oC to +85oC.
High energy density : up to 650Wh/kg and 1280Wh/L.
Low self-discharge rate: less than 1% per year at 20oC
Long life span and superior shelf life : storage periods and achieve a service life of 10 to 20 years.
Excellent safety : inspected by Laboratories, and meet UN transportation test requirements.

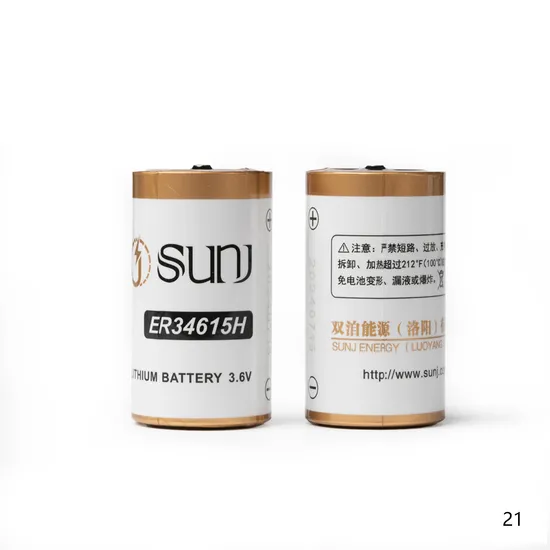

Detailed Photos


Product Parameters
Specification
Lithium thionyl chloride battery Li-SOCL2

Subject	Features	Remark
Specification	ER34615H	Carbon - clad, stainless steel shell, fully sealed structure
Norminal voltage	3.6V
Norminal capacity	19000mAh	2mA, 25±3ºC,cut-off at 2.0V
Max. continuous discharge current	230mA	To get 50% of the nominal capacity at 25ºC, 2.0V cut-off.higher currents possible, consult SUNJ .
Max. available pulse current	400mA	400mA/0.1s pulse,drained every 120s at 25ºC from undischarged cell with 20uA base current,yield voltage readings above 2.7V.Fitting the cell with lithiun-ion battery capacitor will get higher pulse,consult SUNJ .
Operating temperature	-55ºC~+85ºC
Dimension	φ34.2x61.5	D

Electrical performance curve
Application
Production & Technology
Certifications
Packaging & Shipping
