Chinese Industrial Pneumatic Threading and Air Feeding Tfo Yarn Twister Short Fiber Two-for-One Twisting Machine for Cotton/Wool/Nylon/Polyester/Silk/CVC/Tc/PV

Product Description

Product Description

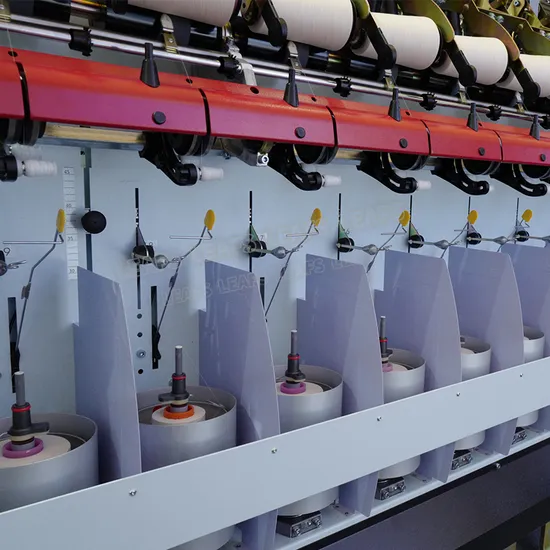

The two for one twister for filament fibers is suitable for twisting of cotton yarn, wool yarn, acrylic yarn, polyester yarn and blended yarn etc.
To purpose build intelligent textile equipment.Our company developed the pneumatic double twister has changed the previous manual lead operation mode and saved the operation time and strength. The machine has increased the output without changing the weight of single yarn, and can save 20-25% electricity, which is highly praised by users.
Product Parameters

Model	LSQ100
Spindle model	190	180	166	156	146	137	120
Spindle pitch	270mm	253mm	253mm	253mm	225mm	205mm	205mm
Spindles each section	16	16	16	16	18	20	20
Each section length	2160mm	2055mm
Spindle speed	8000rpm		10000rpm		Over 10000rpm
Lead mode	Pneumatic yarn drawing
Up lift	Pneumatic uplift
Spindle drive	Dragon belt

1.The pursuit of higher requirement of yarn twist unevenness;
2.Effectively prevent the emergence of multiple strands of yarn;
3.Effectively reduce oil pollution.
4.High spindle speed, effectively increase productivity;
5.Precision forming technology can effectively improve the efficiency of the yarn reverse.
6.Good processing equipment to ensure the stability of parts;
7.Mature control system to ensure the stability of equipment.
8.Precise control technology for single spindle data display;
9.Data acquisition system, effective implementation of automated production workshop.
10.The process is simple and convenient;
11.The pneumatic yarn feeding function can effectively improve the piecing efficiency.

Features
Less manual labor
The process is simple and convenient; The pneumatic yarn feeding function can effectively improve the piecing efficiency.
High quality yarn
The pursuit of higher requirement of yarn twist unevenness; Effectively prevent the emergence of multiple strands ofyarn; Effectively reduce oil pollution.

Less energy consumption
Double bearing spindle structure, effectively reduce spindle energy consumption;can save 20-25% electricity. Excellent spindle structure, effectively reduce the energy consumption of yarn balloon.
High efficiency
High spindle speed, effectively increase productivity; Precision forming technology can effectively improve the efficiency of the yarn reverse.

High stability
Good processing equipment to ensure the stability of parts; Mature control system to ensure the stability ofequipment.
Less maintenance
The fixed bearing structure can effectively reduce the oil change in the middle.

Customer Show
Related machine

Production process
Company Profile
We will pack the goods carefully and safely deliver to your hands.
Our express can be sent to various locations and can be delivered.
FAQ
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
The main structure and raw materials are all supplied by large companies.Key parts are research and developed by our own staff. We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
Factory + trade (integration),30 years focusing on textile machine field,More than 10 years exporting experience.
Q: Product /Quality Guarantee and After Sale Service?
12 months warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.

---
