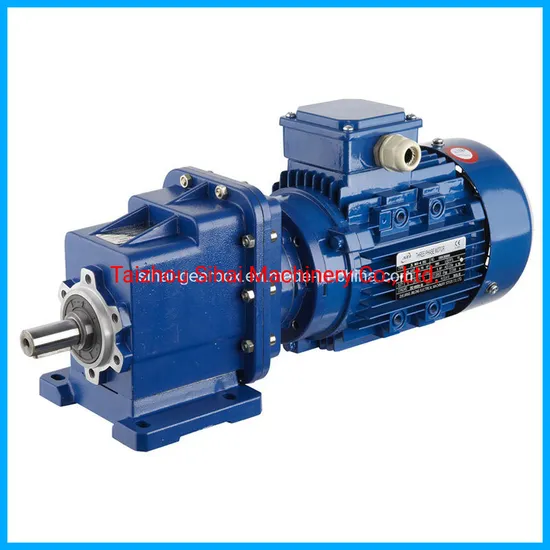

Src Helical Gearbox with Electric DC Motor Mechanical

Product Description

Technical Features
The high degree of modularity is a design feature of SRC helical gearboxes range. It can be connected respectively with motors such as normal motor, brake motor, explosion-proof motor, frequency conversion motor, servo motor, IEC motor and so on. This kind of product is widely used in drive fields such as textile, foodstuff, ceramics packing, logistics, plastics and so on. It is possible to set up the version required using flanges or feet.

Products characteristics
SRC series helical gear units has more than 4 types. Power 0.12-4kw; Ratio 3.66-54; Torque max 120-500Nm. It can be connected (foot or flange) discretionary and use multi-mounting positions according to customers requirements.
Ground-hardened helical gears;
Modularity,can be combined in many forms;
Aluminium casing, light weight;
Gears in carbonize hard, durable;
Universal mounting;
Refined design,space effective and low noise
Structure feature
Model illuminate

1	Code for gear units series
2	No F code means foot mounted.With F code B5 flange mounted.With Z code B14 flange mounted
3	Specification code of gear units 01
4	I,II,III,B5 Output flange specification,default I not to write out is ok
5	IEC: Input flange HS: shaft input
6	Transmission ratio of gear units
7	M1:Mounting position, default mounting position M1 not to write out is ok
8	Position diagram for motor terminal box,default position o°(R) not to write out is ok
9	No mark means without motor Model motor(poles of power)
10	Voltage - frequency
11	Coil in position for motor, default position S not to write out is ok

4.2 Rotation speed n

n1 Gear units input speed

n2 Gear units output speed

If driven by the external gearing,1400r/min or lower rotation speed is suggested so as to optimize the working conditions and prolong the service life.Higher input rotation speed is permitted, but in this situation,the rated torque M2 will be reduced


4.5 Service factor fs

The effect of the driven machine on the gear unit is taken into account to a sufficient level of accuracy using the service factor fs. The service factor is determined according to the daily operation time and the starting frequency Z. Three load classifications are considered depending on the mass acceleration factor. You can read off the service factor applicable to your application in following figure. The service factor selected using this diagram must be less than or equal to the service factor as given in the performance parameter table.

* starting frequency Z: The cycles include all starting and braking procedures as well as change overs from low to high speed

SRC02..(HS) Performance parameter

kw	Output speed	Torque	Speed ratio	fs	Model	IEC
0.55	49.1rpm	103N.M	28.5	1.2	SRCZ01	80B5/B14

SRC helical gearbox with motor mounting position and terminal box orientation
Package
1 pc / carton,several cartons / wooden pallet
Manufacture detail
3~30 days

---
