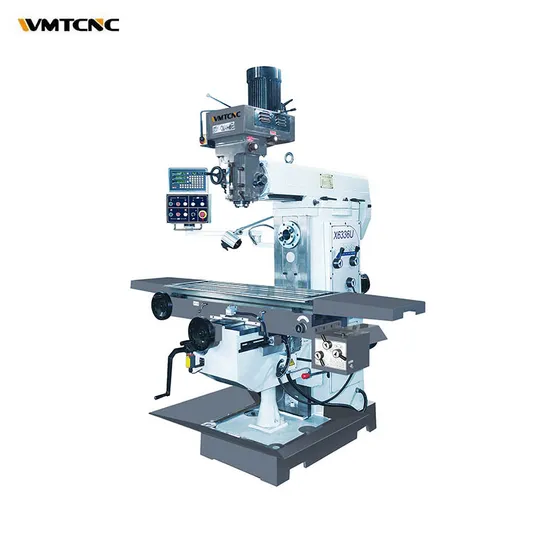

Conventional vertical universal milling machine X6336U milling machinery Factory price

Product Description

Product Description
Conventional vertical universal milling machine X6336U Main Features:
1. Rectangular guideway on Y and Z axis makes the machine stable and rigid.
2. DRO is optional.
3. Fixed structure is used to connect the mill head without addapter, which makes the cut intensity well.

Specification	X6336U
Table size	1320X360mm
Spindle taper	ISO40(V) /ISO50(H)
Distance from spindle to table	135-635mm
Distance from horizontal spindle to table	0-400mm
Distance from spindle to column	200-700mm
Spindle speeds	(16steps)66-4540rpm(V) (12steps)60-1800rpm(H)
Spindle travel	127mm
Feeding of quill	(3steps)0.04 0.08 0.15
Max drilling capacity of auto-feeding	15mm
Rotary milling head (Left/right)	45 degrees
Table travel (horizontal/cross/vertical)	1000X320X450mm
Feeding range of longitudinal cross travel	(8steps)22-555mm/min
X,Y-axis rapid feed speed	1080mm/min
Z-axis rapid feed speed	560mm/min
Z-axis motor power	1100W
Max weight of workpiece	500kg
T-slot number /width/distance	3/18mm/80mm
Horse power for main motor	3.75(V)/4.0kw(H)
X,Y axis driving motor	1100W
Overall dimension	2220x1790x2360mm
N.W./G.W.	2400/2550kg

Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: Do you have a stock?
A3: Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4: What's the MOQ?
A4: One set only.
Q5: How about your quality?
A5: We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6: Do you have professional engineers?
A6: Yes, we have professional engineers and designers. We can provide OEM services.
Q7: Can you provide customized machines?
A7: Yes, we can design and manufacture according to your specific requirements.

---
