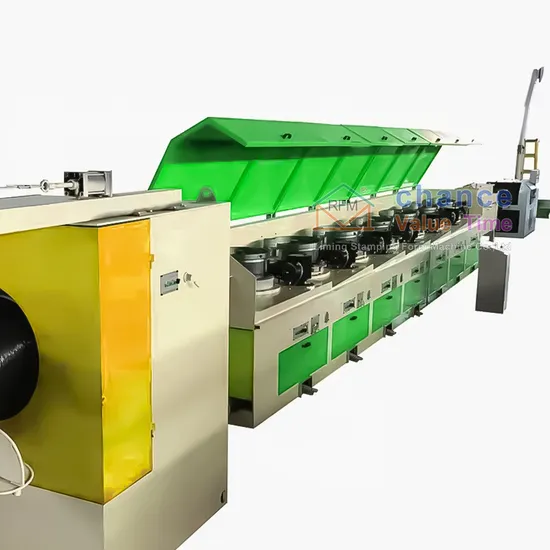

Automatic Straight Line Type Wire Drawing Machine for Nail Making/Barbed Wire/Wire Binding

Product Description

Φ6.0mm Raw material→ High pay-off frame→ Shelling and Rust removal(Derusting machine)
→LZ6/560 Straight Line Wire Drawing Machine→Tension device →Wire take-up machine

Model	Unit	LM400	LM560	LM600	LM800
Capstan diameter	mm	400	560	600	800
Drawing dies	Times	9	9	9	9
Inlet wire diameter	mm	Φ2.5-4.5	Φ5.5-6.5	6.5-8.0	8.0-10
Outlet wire diameter	mm	Φ0.8-1.4	Φ1.6-2.0	Φ2.0-3.0	Φ2.8-3.5
Drawing speed	m/s	12-18	10-15	8-12	8-10
Total reduction rate	%	90.32	90.53	90.53	90.53
Motor power	Kw	7.5-15	22-37	22-37	37-75

Certifications
After Sales Service
FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
Our factory is located in No.3 Road, Botou Development Zone, Cangzhou City, Hebei Province.The nearest airport is Beijing airport ,Tianjin airport or Shijiazhuang airport. We can pick you up from city.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, certificate of origin etc, your customs clearance will be no problem.

---
