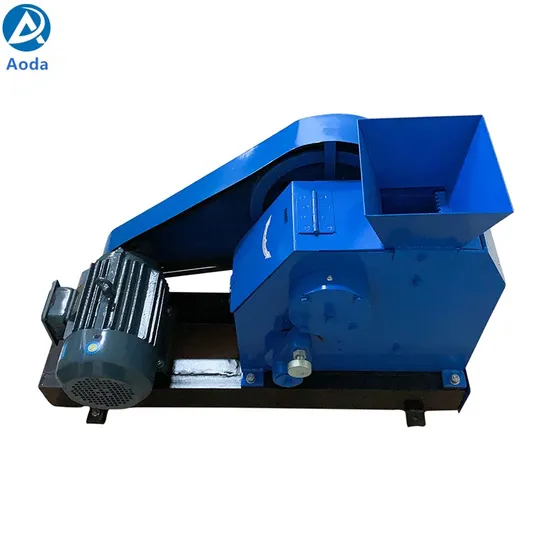

Aoda 150X125 Small Scale Laboratory Stone Rock Jaw Crusher

Product Description

Aoda 150x125 Small scale laboratory stone rock Jaw crusher
Laboratory jaw crusher (referred to as jaw crusher) is mainly used for medium-sized crushing of various ores and bulk materials. It can crush materials with a compressive strength of no more than 320Mpa, and is divided into coarse crushing and fine crushing. The PE series jaw crusher has a complete range of specifications, and its feed size is 125mm~1200mm. It is a primary crushing powder equipment. This equipment is mainly used for coarse, medium and fine crushing of various ores such as limestone, calcium carbide, calcium carbide slag, shale, basalt, river pebbles, bluestone, etc. It has a good effect in cement plants, sand and gravel plants, stone plants, thermal power plant desulfurization, calcium carbide plants, and is widely used in mining, metallurgy, chemical industry, building materials, water conservancy, transportation and other industries.
Work principle
The main structure of the laboratory jaw crusher is composed of a frame, an eccentric shaft, a large pulley, a flywheel, a side guard plate, a toggle plate, a toggle plate back seat, a gap adjustment screw, a reset spring, a fixed jaw plate and a movable jaw plate, among which the toggle plate also serves as an insurance. The crushing method of this series of jaw crushers is a flexural extrusion type. The motor drives the belt and the pulley, and the movable jaw moves up and down through the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw increases, thereby pushing the movable jaw plate to approach the fixed jaw plate. At the same time, the material is squeezed, rubbed, and crushed. When the movable jaw moves downward, the angle between the toggle plate and the movable jaw decreases, and the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring. At this time, the crushed material is discharged from the lower opening of the crushing chamber. As the motor rotates continuously, the movable jaw plate of the crusher performs periodic crushing and discharging, realizing mass production.
Features
1. Crushing ratio is as high as about 15, and the particle size is uniform;
2. Gasket-type discharge port adjustment device, with a large adjustment range and reliable operation;
3. High production efficiency and low energy consumption. Compared with ordinary fine jaw crushers, the processing capacity is increased by 20-35% and the energy consumption is reduced by 15-20% compared with the same specifications;
4. The crushing chamber is deep and has no dead zone, which improves the feeding capacity and output;
5. The use of hyperbolic jaw plate has less wear. Under the same process conditions, the life of the jaw plate can be extended by more than 3-4 times, which is more obvious for highly abrasive materials;
6. The lubrication system is safe and reliable, the parts are easy to replace, and the maintenance workload is small.

Specification

Model	Process capacity(kg)	Feed mouth size(mm)	Feed size(mm)	Output size(mm)	Spindle speed(rpm)	Power(KW)	Voltage(V)	Weight(kg)
100x60	230-400	100x60	50	6-10	650	1.5	380	100
100x100	200-1800	100x100	80	3-25	600	2.2	380	210
125x100	200-180	125x100	80	5-25	500	3	380	235
100x150	200-1800	100x150	90	6-30	500	2.2	380	240
150x125	400-3000	150x125	90	6-38	500	3	380	250

Detailed Photos
Packaging & Shipping
FAQ
Q : What products can you offer?
A : We are a one-stop laboratory instrument supplier that can provide customers with products and solutions according to their needs.
Q : How long is your usual delivery time?
A : Our products are usually shipped out 5-7 days after receiving payment.
Q : What transportation methods do you support?
A : We support express delivery (DHL/FEDEX/UPS/TNT), trucks, trains, planes, and ships.
Q : What trade methods can you accept?
A : We support EXW, FCA, FOB, CFR, CPT etc

---
