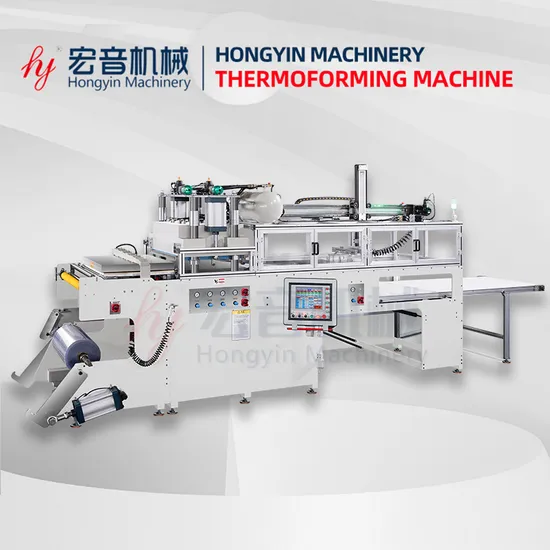

700*950 Plastic Thermoforming Machine for Plastic Salad Containers

Product Description

Introduction of The Machine
This series of machine is a plastic thermoforming equipment with integrated design of machine, electricity and gas, PLC control system, touch screen operation, sheet feeding-heating-molding-cutting - stacking one-time.
HY-70/95 is suitable for BOPS, PS, APET, PVC, PLA and other thermoplastic materials.It can form a variety of lids, boxes, dishes, trays,such as the lids of fast food box, sushi, paper bowl, aluminum foil, the trays of moon cake,pastry, supermarket,and it also can produce medical device packaging,like oral liquid tray, medicine injection tray.
Parameter

Forming Area	700x 950 mm(27.6"x37.4" )
Depth of Draw	125mm (5") maximum
Knife Length	APET:12000mm / OPS:18000 mm
Material Thickness Range	0.15-1.0mm (0.006"-0.040")
Air Pressure	0.7Mpa
Air Consumption	2000 Litres/min
Cooling Water Consumption	15Litres/min
Power Consumption	14kw/hr(Approximate)
Heating power	38kw
Motor power	13kw
Power Supply	AC 380V 50/60HZ
Working speed	600-1200 Cycles/hr
Material Roll Diameter	1000 mm(39.4")maximum
Sheet Width	1000 mm(39.4")maximum
Machine Dimensions	6590x1760x2720mm(259.4" x 69.3" x 107")
Machine Weight	6800kg

Features
1. Use for forming BOPS/HIPS/PS/PVC/PET plastic sheets into various of boxes, dishes, trays, bowls and lids.
2. Combination of mechanical, electrical and pneumatic components, and it combines the material sending, heating, forming and cutting into one process. The final products already cut one by one. 3. The whole system is controlled a micro PLC, which can be operated in man-interface. And it is capability reliable, safe and jarless, less error.
4. Servo motor drives the sheet transport system.
5. Has quickly production capacity, highly utilization ratios of plastic sheet, low air consumption and maintenance, beautiful final products, so it is a new generation ideal package equipment.
6. Telecommuting and memory reserve functions.
About Service.
Q: What's your delivery date?
A: Usually finish the production within 30 days after your 30% advanced payment, actually need to check according to our stock & production plan.
Q: Terms of payment?
A: We accept T/T, 30% in advance and 70% balanced against B/L copy.
We accept L/C at sight.
Q: How many days will you finish installing?
A: We will finish installation and training within 30 days.
Q: How long is your machine's warranty period?
A: All our machines have one year guarantee, starting from the finished installation.
Q: How could we do after one year warranty period?
A: We also can do service for you, if require overseas service, you need pay salary to our technician 150 USD/day.

Q: How could we do if the parts are broken within the warranty?
A: We would express the free replacement parts during the warranty date.

---
