double soft surface sandwich panel making machine / PIR sandwich panel production line with pressing machine

Product Description

Product Description
double soft surface sandwich panel making machine / PIR sandwich panel production line with pressing machine
Product description
Our company offers professional PU sandwich panel production line. Our PU foam machine is characterized by uninflammability, moistureproof capacity, insect-resistance, sound insulation, and light weight. Besides, it is never out of shape whether in dry or wet conditions. It has good heat preservation capacity.

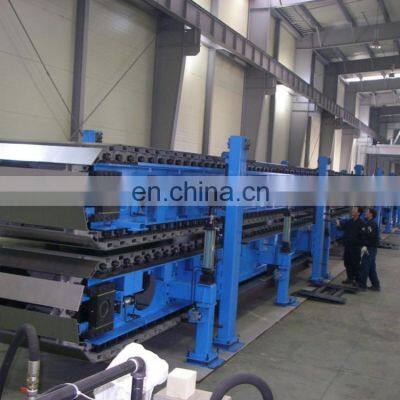

pir panel machine
sandwich panel mac
pir panel machinehine
Main technical parameters of the production line
1. Production type: totally continuous production with PLC controlling
2. PU foam thickness: 30-200mm
3. Standard Sandwich Panel Size:1000mm in Width
4. Sandwich panel length: as per the customer need
5. Linear speed of production: 2-6m/min
6. Reciprocating times of injection head per minute: <60
7. Composite structure: position fixed by double rubber belt conveyer
8. Foaming system: totally automatically continuous foaming, quantity of foaming could be stepless adjustable
9. Main Power of production: ≥ 45KW
10. Length cutting: pneumatic piston driving, non-stop cutting via sliding table
11. Electronic controlling system: PLC controlling system
12. Machine dimension: about 58 meter x 4 meter
13. Total gross weight: about 46 tons
Main components
Hydraulic Automatic Decoiler2 Sets
Panel Roll Forming Machine 2 Sets
PU Foaming & Injecting Machine 1 Set
Belt Conveyer 24 Meter 1 Set
Automatic Tracking Cutter 1 Set
Product Table 1 Set
Control Cabinet1 Set
sandwich panel machine
Working flow
Upper decoiling – roll forming
Bottom decoiling – roll forming – PU foaming & injecting – PU solidifying – length cutting – run out

pir panel machine
Our service
Professional mechanical background sales for better undestanding customer's need.Experienced in China machine industry for supplying comprehensive machines and equipments Strictly product manufacturing and quality controlling to ensure every machine we sold is satisfied with our customer
Engineers available to service machine overseas, for example installation, training, etc
Lifelong service for spares, ware parts, technical supporting, etc
