Factory Price 10000va LED Digital AVR Automatic Voltage Regulator Stabilizer

Product Description

Factory Price 10000va LED Digital Display AVR Automatic Voltage Regulator Stabilizer Product Description
ADVANTAGE
1. High technology: Programmed control computerized
2. Unique design: coloful LED, indicating all protection functions.
3. Quality ensurance: Every sparepart is made by ourself, for example, transformer, PCB.

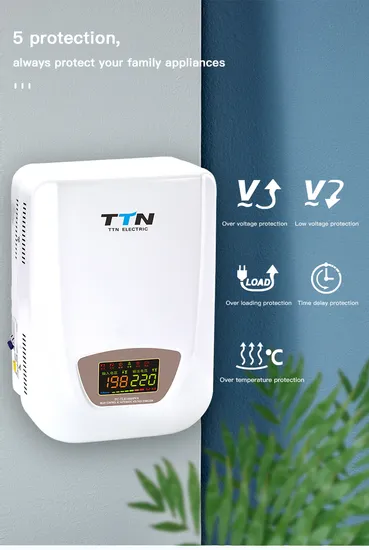

4. Perfect protection function: Over/low voltage protection, over-heat, over-load protection
5. High efficiency: More than 90%
6. Experienced manufactory: More than 20 years
SPECIFICATION
PC-TVR SERIES RELAY CONTROL MODEL single phase
1:Rate capacity:0.5-12KVA
2:Input voltage: AC150V~270V(A Type); AC135V~270V(B Type); AC105V~270V(C Type); AC80V~270V(D Type) or customize
3:Output voltage: 220V±10%
Product Parameters

MODEL
	PC-TVR3000VA		PC-TVR5000VA	PC-TVR8000VA	PC-TVR10000VA	PC-TVR12000VA
TECHNOLOGY	Relay Control Styem + Micro computer Programmed Control
LED DISPLAY	Info	Input Voltage/ Output Voltage/Load Usage/Time Delay/Normal Working/Protection
	PROTECTION	Over Voltage		Output Voltage≥243±4v
		Low Voltage		Output Voltage≤188v±4v
		Over Loading		More Than 120%
		Over Temperture		120ºC±10ºC
		Delay Time		Long time(255 seconds)/Short time(5 seconds)
		Creepage
	Language	English/Russia/Chinese
Input Voltage	AC150-270V(A TYPE);AC135-AC270V(B TYPE) AC105-AC270(C TYPE);AC80V-AC270V(DTYPE)
Output Voltage	220±10% adjustable
Frequency	50Hz/60Hz
Phase	Single phase
Efficency	≥90%
Ambient Temperature	-15ºC-45ºC
Relative humidity	<95%
Waveform distortion	No additional wave from distortion
Insulation resistance	Normally more than 2MΩ
Power	500VA		1000VA	1500VA	2000VA
Packing size(cm)	60.3*27.4*34.9		60.3*27.4*34.9	60.3*27.4*34.9	46*31.7*35.5
Packing (pcs)	6		6	6	4
G.M(KGS)	17.65		20.51	22.69	25.96
Power	3000VA		5000VA	8000VA	10000VA	12000VA
Packing size(cm)	43.2*31.9*39.9		45.7*34.9*43.9	45.7*34.9*43.9	51.8*39.0*27.0	51.8*39.0*27.0
Packing (pcs)	2		2	2	1	1
G.M(KGS)	21.59		28.16	35.5	20.65	22.55

USE FOR EQUIPMENT
Computer / Test equipment / Light system / Safe alarm system / Ray equipment / Medical equipment / Copy machine / Stereo equipment / Numerical control machine tools / Industrial automation equipment / Color and drying equipment / Test equipment / Hi-Fi equipment
After Sales Service
OUR SERVICE
Service for sample:
Sample is available for your testing

Service for Customization:
We can do as your requirement, we accept OEM.

After-sale service
Policy:1.sent the spareparts, 2 years warranty.
2.sent you the documents of technical skills for repairing the cargo
we will sent the sparepartsfor example,LED display,PCB,carbon brush in case of demage.It will be sent together with the cargos.
Company Profile ZHEJIANG TTN ELECTRIC CO., LTD
1)Professional manufacturer of Voltage Stabilizer/Car power inverter/UPS/Solar control system founded in 1994 year with 33,000 square meter building.
2)Best Research/Development Department,one of our technician have more than 20years experience produce voltage stabilizer .
3) Strictly Test systems and equipment of PCBA/transformer/finished product,check each step,each article goes through a strategic pass
4 ) Twelve product lines, daily output 2500pcs. We can expedite for you every day, guarantee not delay your delivery time.
5 )Best OEM/ODM service.
FAQ Q 1. what's the payment terms?
A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,ISO9001,SGS,Son cap
Packaging & Shipping 1.Inner Box: gift box
2.Outside Carton; Standard Exporting Carton

Taking part in Overseas fair
Canton Fair
HK Electric Fair
Moscow Electric Fair
India International Trade Fair
Nigeria Electronic Fair
Certifications
Related Products 1. Desk top type
2. Wall mounted (relay type)
3. Wall mounted (servo type)
4. Cabinet type (single phase)
5. Cabinet type (three phase)
6. Cabinet type (50kVA-100kVA)
