Product Details
Product Description
Product Description
Function Features:
1. Short circuit protection test (refer to real short circuit protection test
microsecond level).
2, single section self power consumption test (refers to the electric current
consumed by each protective plate)
3 、equalizing current and equalizing voltage (can accurately balance current
and equalizing voltage).
Overcharge protection voltage, overcharge recovery voltage. Over discharge
protective voltage. Over discharge recovery voltage. Over discharge protection. Short
term performance test. Charging current protection. Balanced opening voltage.
Balanced real-time current. Total self consumption current of protective plate. Single
node self consumption current.
Application:
1-24/32S BMS testing system mainly faces the PCB board manufacturer and power battery pack manufacturer for detection of battery protecting board.
Lithium Battery Pack 1-24 Series Protection Board High Precision Bms Analyzer Tester With Pc
Bms Testing Machine,Protection Board Test Equipment,Protective Plate Pcb Tester

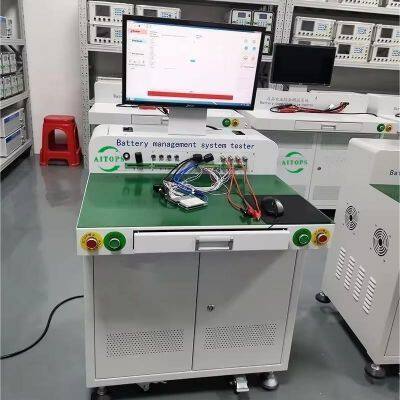

Aitop-pbts-8858 BMS tester can detect the function of the lithium battery protection board and various performance indicators. It is especially suitable for factory inspections for mass production. It is developed using the principle of capacitor simulation battery charging and discharging, and has multiple functions. , Simple operation, fast detection speed, etc.
Product Name BMS Tester
Model No. Aitop-pbts-8858
Overcharge protection 0-5V ±5mv
Over-discharge protection current protection value 1A-200A ±0.1 (continuous long-term discharge)
Overcurrent protection delay 0-8S ±1ms
Equalization function opening voltage 0-5V ±5mV Equalization current 0-1000mA ±0.1uA
Self-consumption of single cell 0-4000uA ±0.1uA
The internal resistance of the main loop test 0-200 milliohms ±1 milliohms
Features *The number of series is optional from 1-24
*Various protection and recovery function tests
*Can choose the number of sections to
be tested according to your own needs
*Test results can be automatically saved
Product Images:
Techinical Parameters:
WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.
we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
Packing and shipping
*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days
Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.
After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided
Looking forward to establish good business relationship with you in the new future,any question,please
Contact us :
Shenzhen AITOP Intelligent Equipment Co. LTD
Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981/18098989643/+8618820281861
Email:sales(@)
