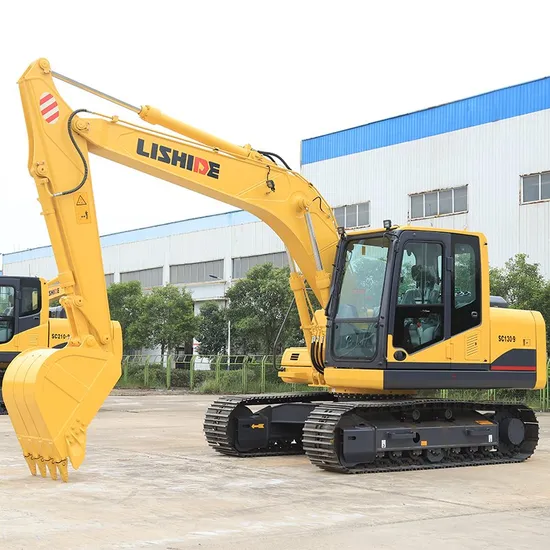

| Model | SC130.9(Cummins) |
| Weight:(T) | 13 |
| Bucket capacity:(m3) | 0.53 |
| Engine type: | CumminsQSF3.8T3TC115 |
| power(kw/r/min) | 86/2200 |
| Fuel tank capacity:(L) | 247 |
| walking spee(high/low):(km/h) | 5.3/3.1 |
| Rotary speed:(r/min) | 12.6 |
| climbing ability:(%) | 35ยบ |
| Digging force: (KN) ISO | 80 |
| Arm digging force :(KN) ISO | 64 |
| Ground pressure:(KPa) | 38 |
| Traction:(kN) | 86 |
| Hydraulic pump Model | K3V63DT |
| Max flow:(L/min) | 128*2 |
| Working pressure:(MPa) | 34.3 |
| Tank capacity:(L) | 130 |
| A-Overall length(mm) | 7576 |
| B-Overall width(mm) | 2490 |
| C-Overall height(boom top)(mm) | 2780 |
| D-Overall height(cab top):(mm) | 2813 |
| E-Counterweight ground clearance:(mm) | 870 |
| F-Min ground clearance(mm) | 433 |
| G-Tail return radius(mm) | 2015 |
| H-Track ground length(mm) | 2750 |
| J-Track length(mm) | 3486 |
| K-Track Gauge(mm) | 1960 |
| L-Track width(mm) | 2460 |
| M-Track shoe width(mm) | 500 |
| N-width of the turntable(mm) | 2490 |
| O-Max digging height(mm) | 8630 |
| P- Max dump height(mm) | 6180 |
| Q-Max digging depth(mm) | 5501 |
| R-Max digging depth of vertical wall(mm) | 4940 |
| Max excavation distance(mm) | 8309 |
| U-Max digging distance in the ground plane(mm) | 8180 |
| V-Min radius(mm) | 2495 |
| X-the distance from the center of of rotation to the back end(mm) | 2015 |
| Y-Caterpillar tooth Thickness (mm) | 25 |
| Z- Height of balancing (mm) | 1935 |
| A1-Length ground when transported(mm) | 4402 |
| Arm length(mm) | 2500 |
| Boom length(mm) | 4600 |
