1TPD Automatic stainless steel peanut sunflower seeds coconut mustard palm crude cooking oil recycling processing oil refinery plant edible oil refining machine

Product Description

1TPD Automatic stainless steel peanut sunflower seeds coconut mustard palm crude cooking oil recycling processing oil refinery plant edible oil refining machine
Product Description
Craft flow sheet for refining workshop

water phosphoric acid caustic soda bleaching clay
Crude oil -----→ water washing--------------------→ degumming -------------→ deacidfication---→drying--------→

steam
decolorization-------→ deodorization -----→ finished oil
Main machine list:

No	Serial number	Equipment name	Quantity	Power(KW)	Materials	Remark
1	L101A/B	Refining tank	2	0.55×2	SS304	Diameter: 900mm; Straight section height: 1000mm; Lower cone head, cone angle: 90°; Steel plate thickness: 3mm
2	L102	Hot water, alkaline water tank	1		SS304	Steel plate thickness: 3mm
3	L103	Clay box	1		SS304	Steel plate thickness: 3mm.
4	L104	Decolorization tank	1	0.55	SS304	Diameter: 900mm; Straight section height: 1000mm; Upper elliptical head; Lower cone head, cone angle: 90°; Steel plate thickness: 6mm.
5	L105	Leaf filter	1		SS304	Diameter: 350mm; Height of straight section: 500mm; Filtering area: 2M2 Steel plate thickness: 5mm 3 eyepieces
6	L106	Bag filter	1		SS304	Steel plate thickness: 4mm 4 filter bags
7	L107	Deodorant tank	1	12	SS304	Diameter: 900mm; Straight section height: 1000mm; The upper and lower parts are all oval heads; Steel plate thickness: 6mm. With steam heating coil + electric heating. Diameter 800mm
8	L108	Gas collection device	1		SS304	Steel plate thickness: 4mm
9	L109	Water ring vacuum pump	1	4
10	L110	Water tank	1		SS304	Steel plate thickness:3mm
11	L111	Steam superheater	1			Pressure vessel
12	L112	Electric heating heat conduction oil furnace	1	18	SS304	Main engine, high oil tank, position oil tank, heat transfer oil circulating pump
13	L113	Air compressor	1	5.5		Users configure their own.
14	P101	Saponin Oil Pump	1	2.2
15	P102	Decolorization pump	1	1.1	SS304
16	P103	Oil pump	1	1.1	SS304
15		Distribution Cabinet	1
16		Installation material				Pipes, valves, fittings and other materials are all SS304
17		Total	18	45.55

Neutralization pot: For acid refining, alkali refining and water washing. Introduction of main equipment:
Decolorization pot: Bleach oil and remove pigment.
Deodorization pot: Remove odor of oil(Made of stainless steel).
Steam generator: Provide heat energy for production,the temperature can reach 280°C.
Vacuum pump: Provide vacuum degree for decolorization and deodorization,up to above 755mgHg.
Air compressor: Dry decolorization bleaching clay.
Filter press: Filter bleaching clay.
Steam generator: Provide steam for deodorization & distillation
Specification:1T/D

General description of main machines
1.Refinery vessel---------Used to neutralizing, and water washing, to rid off the acid.
2.Decoloring vessel---------Used to get rid of the oil color
3.Deodorizing vessel-------Used to get rid off the smell of oil.
4.Steam generator----It's used to supply for the heats required to the line, it could make the temperature up to 280 degrees.
5.Steam separator-----Separate the steams to oil refiner, decolorer, deodorizer, hot water tank, etc.
6.Press filter---------Used to filter the the decolored oil.
7.Water pump-----Used to pump cool water into water tank.

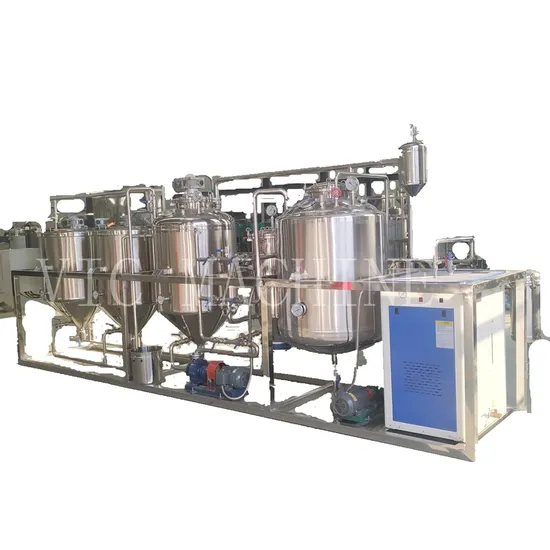

More pictures about the oil refinery machine
Details about the oil refinery machine
Package
Final oil

We can do the complete oil production plant processing from Pre-pressing workshop to Solvent extraction workshop to Oil refinery workshop to Final oil bottling workshop. The raw materials are sunflower seeds, soybean, rapeseeds, olive, palm kernal, coconut, jatropha, cottonseeds, rice bran, corn embyro etc.
All the equipment we design, delivery, export, installation and after sale service whole life.
The whole turn key project processing capacity we can do from 1T/D to 500T/D, pls inform us the raw mateirals and processing capacity when inquiry, we can offer the whole project accordingly.
