Product Description
Product Description
1 Product Overview
2 Order Specifications and Selection
3 Service ConceptOur company solemnly promise you:
You buy not only the product, but also the meticulous and thoughtful technical support services!!!( =^_^= )
This product, the site only ordinary workers electric installation! No debugging!
We provide free remote guidance, remote configuration and debugging service, and send the data to the user-specified cloud platform.
Free Internet of Things solution consulting services!
4 Product Characteristics Parameters4.1 Collect Characteristicsl Measurement range: DN15~6000 (pipe diameter)
l Measurement medium: water, seawater, industrial sewage, acid and alkali liquor, alcohol, beer, various oils and other single uniform liquid that can conduct ultrasonic waves
l Accuracy: ±1%
l Display: a 2x20-character type LCD display
4.2 Electrical Characterl Power supply mode: 9-36V DC power supply / 220V AC power supply
l Working power consumption: 1~2W
4.3 Communication Characteristicsl Wireless transmission mode: 4G / NB-IOT / LoRa / WiFi
l Communication protocol: MQTT / TCP / UDP / HTTP / SSL / ModBus RTU, and other protocols can be customized
l Data forwarding: any public network server
l Number of server centers: up to simultaneous data reporting to 7 cloud servers.
l Heartbeat packet: support custom heartbeat packet, can be set to signal intensity.
l Registration package: support custom registration package, can be set to IMEI code.
l Positioning: Support LBS base station positioning to facilitate the query of device location.
l Signal output:
1 circuit 4 ~ 20 mA current output, impedance 0~1K
1-way 0CT pulse output (pulse width default 200ms)
1-way relay output

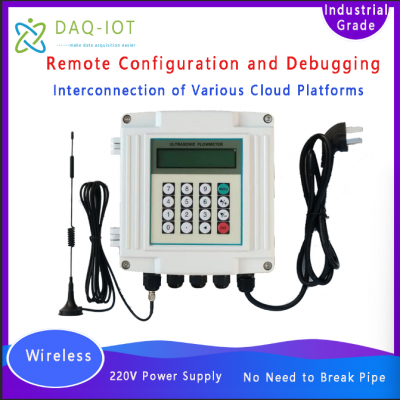

4.4 Structural PropertyUltrasonic flowmeter = host machine + ultrasonic sensor
Ultrasonic heat meter = host + ultrasonic sensor + temperature sensor
l Antenna type: external suction cup type antenna
l Material: high-grade aluminum alloy shell
l Main body protection level: IP65
l Sensor protection level: IP68
l Main body installation method: wall-mounted installation
4.5 Work Environmentl Temperature
Host: -20°C~+60°C; Flow sensor: -30°C~+160°C
l Humidity
Host: 85% RH; flow sensor: water immersion operation, water depth <2m (note: sensor after glue filling)
5 The Core Advantages of the Productv The installation is simple and flexible, fast deployment, and the sensor can be installed in the form of pipe segment, insert or external clip.
v The probe is adsorbed to the outer wall of the pipe without the end pipe flow break.
v Support custom registration package and heartbeat package, facilitate the platform to distinguish devices.
v Support any Internet of Things cloud platform and configuration software, and provide data protocol docking.
v Support Ali Cloud, Baidu Tiangong, OneNet, Tencent Cloud and other mainstream cloud platforms.
v Non-invasive collection, does not affect the normal operation of the equipment.
v Support remote configuration parameters and FOTA remote upgrade to minimize the personnel cost of site construction and maintenance.
6 Data Reporting Communication Protocol6.1 Protocol Parsing InstructionsFor UDP / TCP / MQTT / HTTP and other push methods, users should provide the IP address and port number of the public network of the cloud server to receive the data.
Example of JSON format:
{
"deviceId": 123456789, / / device serial number
"Flow": 11.1, / / instantaneous flow, in m³ / h
"heatFlow": 12.21, / / instantaneous heat flow, in GJ / h
"fluidSpeed": 11.1, / / fluid speed in m / s
"fluidSoundSpeed": 11.1, / / measure the sound speed of the fluid in m / s
"positiveFlow": 11.1, / / positive cumulative flow in m³
"negativeFlow": 11.1, / / negative cumulative flow, in m³
"positiveHeat": 11.1, / / positive heat accumulation in GJ
"negativeHeat": 11.1, / / negative cumulative heat, unit: GJ
"netFlow": 11.1, / / net cumulative flow, unit: m³
"netHeat": 11.1, / / net cumulative heat, unit: GJ"
"supplyTemp": 11.1, / / Water supply temperature, unit: ℃
returnTemp":11.1// Rebound temperature in ℃
}
6.2 The Protocol Receives the TestUse network debugging assistant Net Assist.
6.3 Agreement CustomizationIf you need to customize other communication protocols, you can contact the business personnel to communicate.
7 Platform Docking7.1 Default PlatformThe product is connected to our designated open industrial IOT platform by default, and the platform interface is as follows:
Computer-side browser interface
Mobile terminal WeChat access interface
7.2 User Specified PlatformTake the connection of Ali Cloud platform as an example. After users create products and add devices on the Ali Cloud Internet of Things platform, users need to provide a triad: {ProductKey, DeviceName, DeviceSecret} and the MQTT theme to be released.
For example, the value of triples are:
ProductKey = b0FMK1Ga5cp
DeviceName = 862991419835241
DeviceSecret = y7MTCG6Gk33Ux26bbWSpANl4OaI0bg5Q
Take OneNet platform docking as an example, after users create products and add devices on China Mobile OneNet platform, users need to provide product ID and and device registration code.
for instance:
ID：332590
Registration code: DGRUa7Vr9KYGunwJ
8 Application Cases
Installation renderings
www.daq-iot.com
Tel: +8619936624847
Email: shengrunan@daq-iot.com
WhatsApp：+8619936624847
>>
